5908-105

Obsolete

ebm-papst Inc.

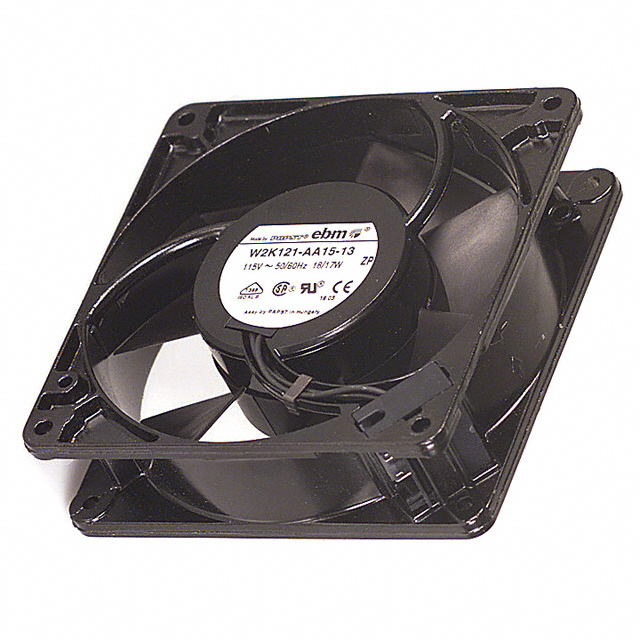

FAN AXIAL 127X38MM 115VAC TERM

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

FAN AXIAL 127X38MM 115VAC TERM

Technical Specifications

Parameters and characteristics for this part

Specification	5908-105

Air Flow	3.39 mł/min
Air Flow	121.2 CFM
Bearing Type	Ball
Fan Type	Tubeaxial
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Metal
Noise	47 dB
Power (Watts)	17 W
Size / Dimension [x]	127 mm
Size / Dimension [y]	127 mm
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	589.7 g
Weight	1.3 lbs
Width [y]	38 mm

Part	Air Flow	Air Flow	Fan Type	Bearing Type	Noise	Material - Blade	Width [y]	Weight	Weight	Voltage - Rated	Termination	Material - Frame	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]
ebm-papst Inc. 5908-105	3.39 mł/min	121.2 CFM	Tubeaxial	Ball	47 dB	Fiberglass Reinforced Nylon Polyamide (PA)	38 mm	589.7 g	1.3 lbs	115 VAC	2 Terminals	Metal	17 W	127 mm	127 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 115VAC Square - 127mm L x 127mm H Ball 121.2 CFM (3.39m³/min) 2 Terminals
