SA04-11GWA

Active

Kingbright

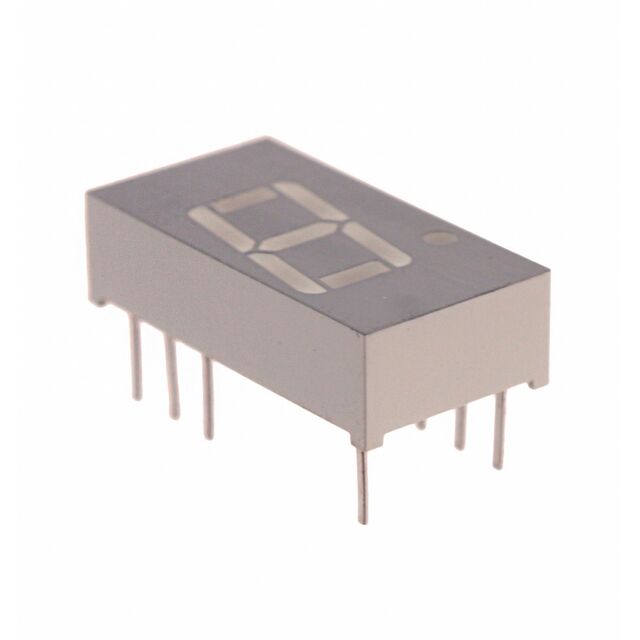

DISPLAY 7SEG 0.4" SGL GRN 14DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SA04-11GWA

Active

Kingbright

DISPLAY 7SEG 0.4" SGL GRN 14DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SA04-11GWA

Color	Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	7-Segment
Millicandela Rating	8.6 mcd
Number of Characters [custom]	1
Package / Case	0.295 in
Package / Case	7.5 mm
Package / Case	14-DIP
Power Dissipation (Max) [Max]	62.5 mW
Size / Dimension [x]	0.738 "
Size / Dimension [x]	18.75 mm
Size / Dimension [y]	0.386 in
Size / Dimension [y]	9.8 mm
Size / Dimension [z]	0.2 in
Size / Dimension [z]	0.2 "
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	565 nm

SA04-11 Series

Part	Digit/Alpha Size	Digit/Alpha Size [custom]	Package / Case	Package / Case	Package / Case	Number of Characters [custom]	Millicandela Rating	Wavelength - Peak	Color	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Display Type	Voltage - Forward (Vf) (Typ)	Common Pin	Power Dissipation (Max) [Max]	Current - Test
Kingbright SA04-11SYKWA	10.16 mm	0.4 in	0.295 in	7.5 mm	14-DIP	1	130 mcd	590 nm	Yellow	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	7-Segment	2 V	Common Anode	75 mw	20 mA
Kingbright SA04-11SRWA	10.16 mm	0.4 in	0.295 in	7.5 mm	14-DIP	1	30 mcd	660 nm	Red	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	7-Segment	1.85 V	Common Anode	75 mw	20 mA
Kingbright SA04-11EWA	10.16 mm	0.4 in	0.295 in	7.5 mm	14-DIP	1	5.6 mcd	627 nm	Red	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	7-Segment	2 V	Common Anode	75 mw	20 mA
Kingbright SA04-11GWA	10.16 mm	0.4 in	0.295 in	7.5 mm	14-DIP	1	8.6 mcd	565 nm	Green	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	7-Segment	2.2 V	Common Anode	62.5 mW	20 mA
Kingbright SA04-11SURKWA	10.16 mm	0.4 in	0.295 in	7.5 mm	14-DIP	1	80 mcd	645 nm	Red	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	7-Segment	1.95 V	Common Anode	75 mw	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.43
		10	$ 1.58
		100	$ 1.15
		500	$ 0.98
		1000	$ 0.93
		2000	$ 0.89
		5000	$ 0.84
		10000	$ 0.82

Description

General part information

SA04-11 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.2V 20mA 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) 14-DIP (0.295", 7.50mm)
