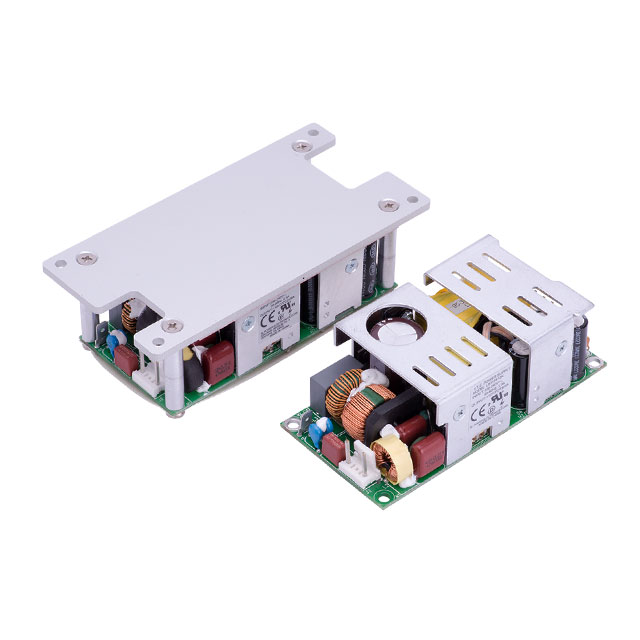

LB115S56K
ActiveSL POWER / Advanced Energy
AC/DC POWER SUPPLY SINGLE-OUT 56V 1.34(CONVECTION)A/2.05(FORCED AIR)A 115W 8-PIN
Deep-Dive with AI
Search across all available documentation for this part.
LB115S56K
ActiveSL POWER / Advanced Energy
AC/DC POWER SUPPLY SINGLE-OUT 56V 1.34(CONVECTION)A/2.05(FORCED AIR)A 115W 8-PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LB115S56K |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 [custom] | 1.34 A |
| Efficiency | 90 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 75 W |
| Power (Watts) | 115 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 32.1 mm |
| Size / Dimension [z] | 1.26 in |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 56 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LB115S56 Series
Open Frame AC DC Converters 1 Output 56V 90 ~ 264 VAC Input
