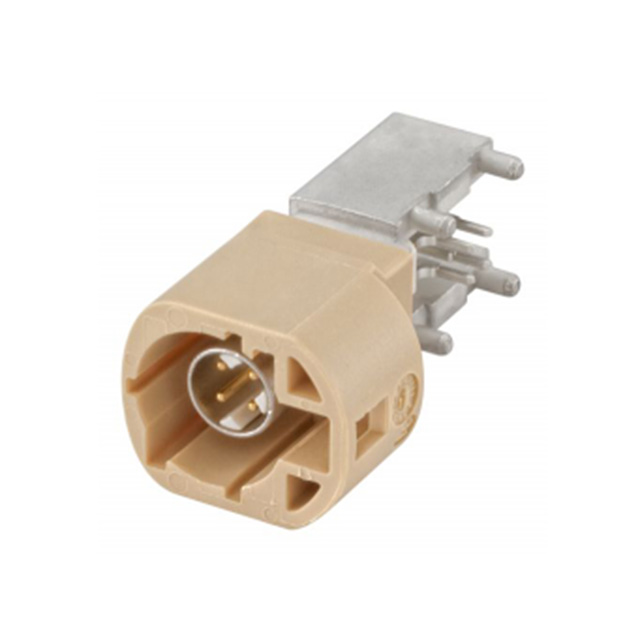

D4S2UL-40MA5-J

Active

Rosenberger

CONN HSD FAKRA PLUG R/A 100OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN HSD FAKRA PLUG R/A 100OHM

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Features	Fastening Type	Body Material	Body Finish	Center Contact Plating	Impedance	Center Contact Material	Frequency - Max [Max]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Contact Termination	Mating Cycles	Shield Termination	Connector Style	Number of Ports	Housing Color
Rosenberger D4S2UL-40MA5-O	100 V	Code O	Latch Lock	Brass	Nickel	Gold	100 Ohms	Bronze	2 GHz	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	Male Pin Plug	Through Hole Right Angle	Solder	25	Solder	Fakra HSD® Quadraxial	1	Green Light
Rosenberger D4S2UL-40MA5-K	100 V	Code K	Latch Lock	Brass	Nickel	Gold	100 Ohms	Bronze	2 GHz	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	Male Pin Plug	Through Hole Right Angle	Solder	25	Solder	Fakra HSD® Quadraxial	1	Curry
Rosenberger D4S2UL-40MA5-G	100 V	Code G	Latch Lock	Brass	Nickel	Gold	100 Ohms	Bronze	2 GHz	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	Male Pin Plug	Through Hole Right Angle	Solder	25	Solder	Fakra HSD® Quadraxial	1	Gray
Rosenberger D4S2UL-40MA5-J	100 V	Code J	Latch Lock	Brass	Nickel	Gold	100 Ohms	Bronze	2 GHz	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	Male Pin Plug	Through Hole Right Angle	Solder	25	Solder	Fakra HSD® Quadraxial	1	Beige

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole, Right Angle Solder
