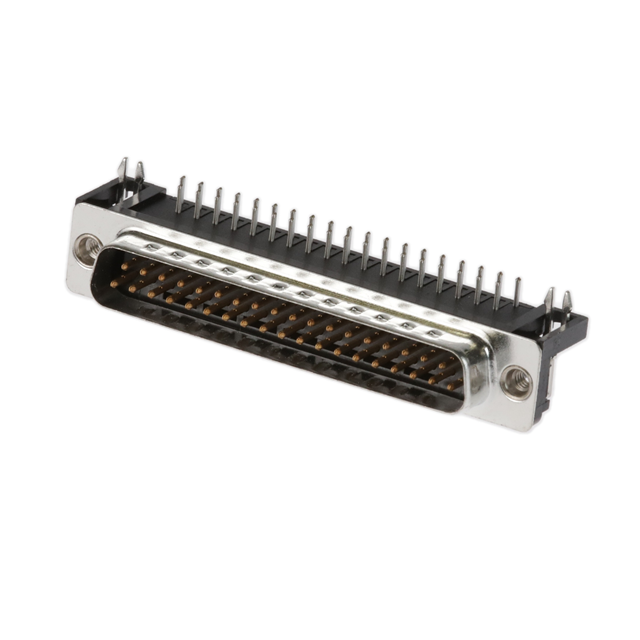

6E17C037PAJ121

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 37POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 37POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	6E17C037PAJ121

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Glass Filled, Polyamide (PA), Nylon
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

Part	Backset Spacing	Backset Spacing	Flange Feature	Termination	Material Flammability Rating	Shell Material, Finish	Number of Rows	Number of Positions	Connector Type	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Current Rating (Amps)	Shell Size, Connector Layout	Connector Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Material	Dielectric Material
Amphenol ICC (Commercial Products) 6E17C037PBF021	8.08 mm	0.318 "	Housing/Shell (Unthreaded)	Solder	UL94 V-0	Nickel Plated Steel	2	37	Male Pins Plug	Gold	Through Hole Right Angle	3 Áin	0.076 Ám	Signal	5 A	4 (DC C)	D-Sub	Board Lock Grounding Indents Shielded	105 ░C	-55 °C	Black	Copper Alloy	Glass Filled Nylon Polyamide (PA)
Amphenol ICC (Commercial Products) 6E17C037PAJ221	8.08 mm	0.318 "	Female Screwlock (4-40) Mating Side	Solder	UL94 V-0	Nickel Plated Steel	2	37	Male Pins Plug	Gold	Through Hole Right Angle	30 Áin	0.76 Ám	Signal	5 A	4 (DC C)	D-Sub	Board Lock Grounding Indents Shielded	105 ░C	-55 °C	Black	Copper Alloy	Glass Filled Nylon Polyamide (PA)
Amphenol ICC (Commercial Products) 6E17C037PAJ121	8.08 mm	0.318 "	Housing/Shell (4-40)	Solder	UL94 V-0	Nickel Plated Steel	2	37	Male Pins Plug	Gold	Through Hole Right Angle	30 Áin	0.76 Ám	Signal	5 A	4 (DC C)	D-Sub	Board Lock Grounding Indents Shielded	105 ░C	-55 °C	Black	Copper Alloy	Glass Filled Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Sub Plug, Male Pins Connector
