9W1TN48P1H01

Active

Sanyo Denki America Inc.

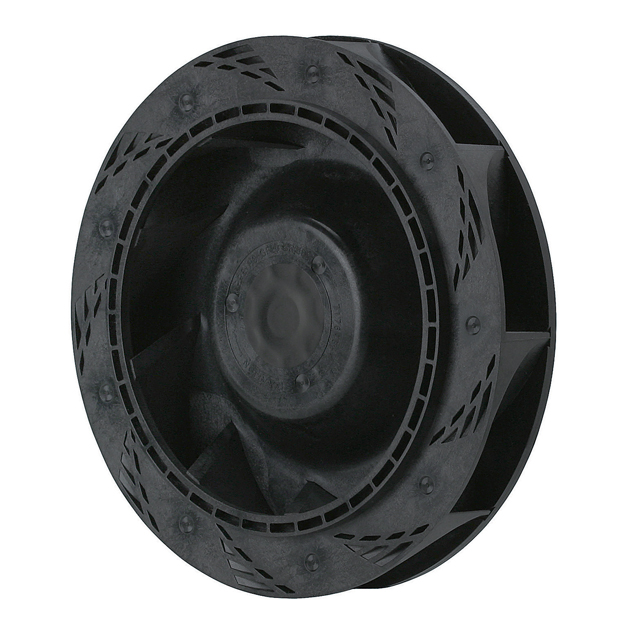

FAN IMP MTRZD 150X35MM 48VDC

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN IMP MTRZD 150X35MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	9W1TN48P1H01

Air Flow	3.78 mł/min
Air Flow	135 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	320 mA
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	Varies Based on Temperature
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	59 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	15.4 W
RPM	3800 RPM
Size / Dimension	Round
Size / Dimension [diameter]	150 mm
Static Pressure	1.578 in H2O
Static Pressure	393.1 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	55.2 VDC
Voltage Range [Min]	36 VDC
Weight	330.22 g
Weight	0.728 lb
Width [y]	35 mm

Part	Power (Watts)	Features	Ingress Protection	Static Pressure	Static Pressure	Termination	Voltage - Rated [custom]	Air Flow	Air Flow	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Current Rating (Amps)	Bearing Type	RPM	Material - Frame	Lifetime @ Temp.	Approval Agency	Weight	Weight	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [diameter]	Size / Dimension	Material - Blade
Sanyo Denki America Inc. 9W1TN48P1H01	15.4 W	PWM Control Speed Sensor (Tach)	IP54 - Dust Protected Water Resistant	1.578 in H2O	393.1 Pa	4 Wire Leads	48 VDC	3.78 mł/min	135 CFM	35 mm	-20 °C	70 °C	-20 C	70 °C	59 dB(A)	320 mA	Ball	3800 RPM	Aluminum	Varies Based on Temperature	CSA TUV UL	330.22 g	0.728 lb	Motorized Impellers	36 VDC	55.2 VDC	150 mm	Round	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 84.03

General part information

Fan Motorized Impellers 48VDC Round - 150mm Dia Ball 135.0 CFM (3.78m³/min) 4 Wire Leads
