DF3-12S-2C

Active

Hirose Electric USA, Inc.

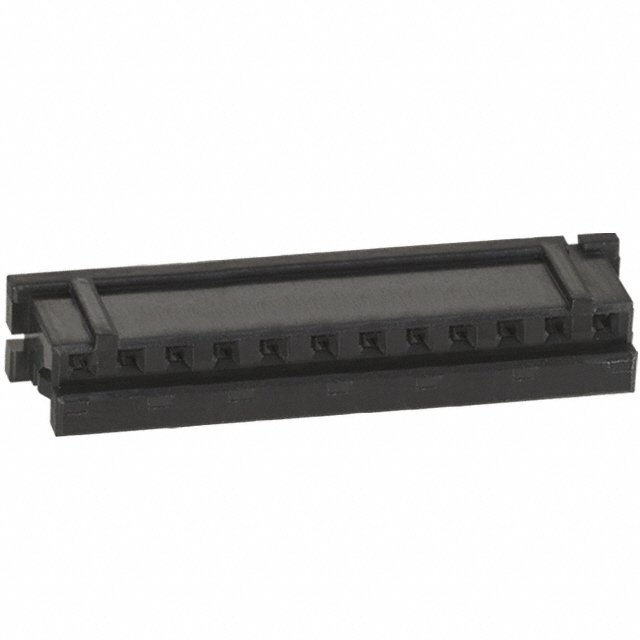

CONN RCPT HSG 12POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF3 Series Datasheet Datasheet

DF3-12S-2C

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 12POS 2.00MM

Deep-Dive with AI

DocumentsDF3 Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-12S-2C

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

DF3-12S Series

Part	Contact Material	Contact Finish - Post	Number of Positions	Insulation Height	Insulation Height	Voltage Rating	Current Rating (Amps)	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Connector Type	Number of Rows	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Mated Stacking Heights [z]	Material Flammability Rating	Insulation Color	Contact Type	Style	Insulation Material	Contact Finish - Mating	Contact Finish	Pitch [x]	Pitch [x]	Wire Gauge	Features	Cable Termination	Wire Type	Color	Note	Contact Termination
Hirose Electric USA, Inc. DF3-12S-2DSA(25)	Phosphor Bronze	Tin	12	5.9 mm	0.232 in	30 VAC	3 A	All	0.118 in	3 mm	2 çm	78.7 çin	Through Hole	Solder	78.7 µin	2 µm	0.079 in	2 mm	Friction Lock	Receptacle	1	Square	-30 ░C	85 °C	6.6 mm 7.5 mm	UL94 V-0	Black	Female Socket	Board to Board Cable	Nylon Polyamide (PA)
Hirose Electric USA, Inc. DF3-12S-2DSA(50)	Phosphor Bronze	Tin	12	5.9 mm	0.232 in	30 VAC	3 A	All	0.118 in	3 mm			Through Hole	Solder			0.079 in	2 mm	Friction Lock	Receptacle	1	Square	-30 ░C	85 °C	6.6 mm 7.5 mm	UL94 V-0	Black	Female Socket	Board to Board Cable	Nylon Polyamide (PA)	Gold
Hirose Electric USA, Inc. DF3-12S-2R26(01)			12										Free Hanging (In-Line)							Receptacle	1							Female Socket				Gold	0.079 in	2 mm	26 AWG	Closed End	IDC	Discrete	Black
Hirose Electric USA, Inc. DF3-12S-2R28(05)			12										Free Hanging (In-Line)							Receptacle	1							Female Socket				Tin	0.079 in	2 mm	28 AWG	Closed End	IDC	Discrete	Black
Hirose Electric USA, Inc. DF3-12S-2C			12										Free Hanging (In-Line)							Receptacle	1		-55 °C	105 ░C				Female Socket		Nylon Polyamide (PA)			0.079 in	2 mm					Black	Contacts Not Included	Crimp
