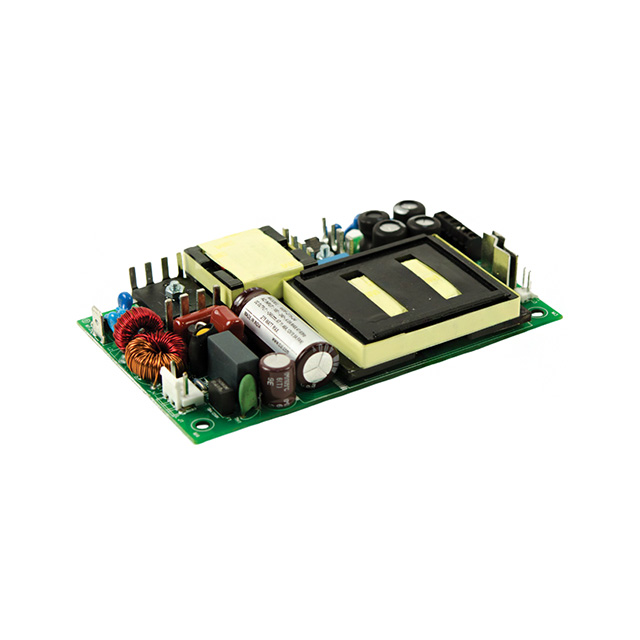

VOF-275-12-1

Active

CUI Inc.

AC/DC CONVERTER 12V 160W

Deep-Dive with AI

Search across all available documentation for this part.

VOF-275-12-1

Active

CUI Inc.

AC/DC CONVERTER 12V 160W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VOF-275-12-1

Applications	ITE (Commercial)
Approval Agency	SIQ, CB Scheme, EN, UL, TUV, IEC, FCC
Current - Output 1	13.33 A
Efficiency	88 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	160 W
Power (Watts) [Max]	275 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	76.2 mm
Size / Dimension [y]	3 "
Size / Dimension [z]	0.75 in
Size / Dimension [z]	19.1 mm
Standard Number	55024, 55032 Class B, 61000-3-3, 61000-3-2, 60950-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

VOF-275 Series

Part	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Standard Number	Current - Output 1	Approval Agency	Power (Watts) [Max]	Power (Watts)	Type	Voltage - Isolation	Features	Applications	Mounting Type	Voltage - Output 1
CUI Inc. VOF-275-58	264 VAC	80 VAC	1	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	92 %	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	2.76 A	CB Scheme EN FCC IEC SIQ TUV UL	275 W	160 W	Open Frame	3000 V	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	Chassis Mount
CUI Inc. VOF-275-24-1	264 VAC	80 VAC	1	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	90 %	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	6.67 A	CB Scheme EN FCC IEC SIQ TUV UL	275 W	160 W	Open Frame	3000 V	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	Chassis Mount	24 V
CUI Inc. VOF-275-48-1	264 VAC	80 VAC	1	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	92 %	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	3.33 A	CB Scheme EN FCC IEC SIQ TUV UL	275 W	160 W	Open Frame	3000 V	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	Chassis Mount	48 V
CUI Inc. VOF-275-30-1	264 VAC	80 VAC	1	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	90 %	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	5.33 A	CB Scheme EN FCC IEC SIQ TUV UL	275 W	160 W	Open Frame	3000 V	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	Chassis Mount	30 V
CUI Inc. VOF-275-15	264 VAC	80 VAC	1	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	88 %	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	10.67 A	CB Scheme EN FCC IEC SIQ TUV UL	275 W	160 W	Open Frame	3000 V	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	Chassis Mount	15 V
CUI Inc. VOF-275-12	264 VAC	80 VAC	1	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	88 %	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	13.33 A	CB Scheme EN FCC IEC SIQ TUV UL	275 W	160 W	Open Frame	3000 V	Adjustable Output Standby Output Universal Input	ITE (Commercial)	Chassis Mount	12 V
CUI Inc. VOF-275-30	264 VAC	80 VAC	1	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	90 %	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	5.33 A	CB Scheme EN FCC IEC SIQ TUV UL	275 W	160 W	Open Frame	3000 V	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	Chassis Mount	30 V
CUI Inc. VOF-275-12-1	264 VAC	80 VAC	1	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	88 %	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	13.33 A	CB Scheme EN FCC IEC SIQ TUV UL	275 W	160 W	Open Frame	3000 V	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	Chassis Mount	12 V
CUI Inc. VOF-275-48	264 VAC	80 VAC	1	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	92 %	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	3.33 A	CB Scheme EN FCC IEC SIQ TUV UL	275 W	160 W	Open Frame	3000 V	Adjustable Output Standby Output Universal Input	ITE (Commercial)	Chassis Mount	48 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	84	$ 159.67

Description

General part information

VOF-275 Series

Open Frame AC DC Converters 1 Output 12V 80 ~ 264 VAC Input
