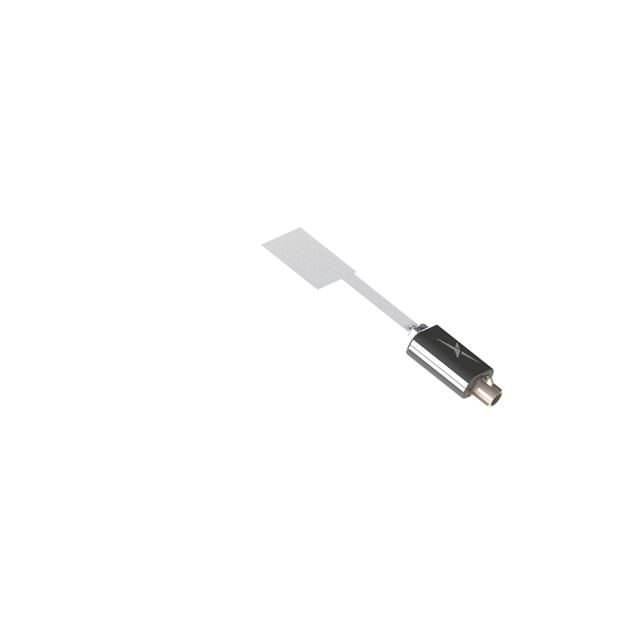

TFX257.A
ActiveTAOGLAS
RF ANTENNA, 5.925 TO 7.125GHZ, WIFI, 2.04DBI, 50 OHM, LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
TFX257.A
ActiveTAOGLAS
RF ANTENNA, 5.925 TO 7.125GHZ, WIFI, 2.04DBI, 50 OHM, LINEAR
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | TFX257.A |
|---|---|
| Antenna Type | Flat Patch |
| Applications | Wi-Fi |
| Features | Transparent |
| Frequency (Center/Band) | 6.525 GHz, 2.45 GHz, 5.5 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 5.85 GHz, 7.125 GHz, 2.5 GHz |
| Frequency Range [Min] | 5.15 GHz, 5.925 GHz, 2.4 GHz |
| Gain | 4.59 dBi, 2.04 dBi, 3.58 dBi |
| Height (Max) [Max] | 0.5 mm |
| Height (Max) [Max] | 0.02 in |
| Mounting Type | Surface Mount |
| Number of Bands | 3 |
| Power - Max [Max] | 2 W |
| RF Family/Standard | WiFi |
| Termination | Fakra |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TFX257 Series
RF ANTENNA Wi-Fi Flat Patch Fakra Surface Mount
