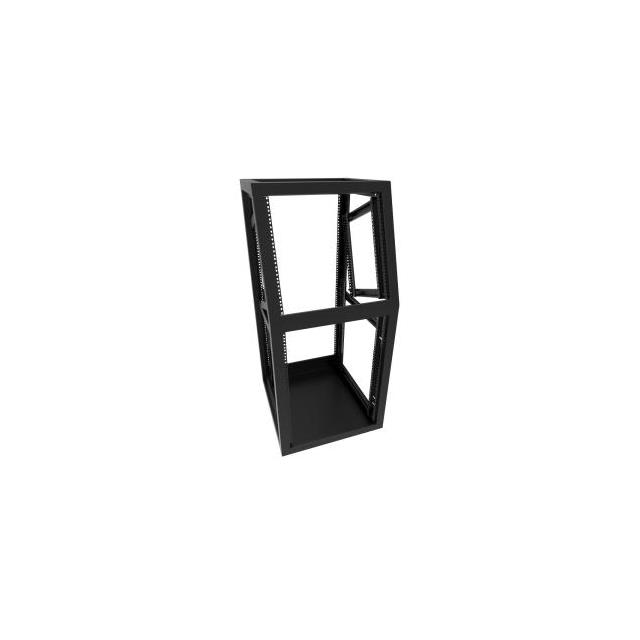

1564B2BK1

Active

Hammond Manufacturing

CONSOLE STEEL 24.5X22.6X49 BLK

Search across all available documentation for this part.

Active

Hammond Manufacturing

CONSOLE STEEL 24.5X22.6X49 BLK

Technical Specifications

Parameters and characteristics for this part

Specification	1564B2BK1

Color	Black
Dimensions - Overall [x]	622.3 mm
Dimensions - Overall [x]	24.5 "
Dimensions - Overall [y]	22.56 in
Dimensions - Overall [y]	573.02 mm
Dimensions - Overall [z]	1244.6 mm
Dimensions - Overall [z]	49 "
Dimensions - Panel [x]	24.5 in
Dimensions - Panel [x]	622.3 mm
Dimensions - Panel [y]	484.12 mm
Dimensions - Panel [y]	19.06 in
Dimensions - Panel [z]	1071.63 mm
Dimensions - Panel [z]	42.19 in
Door	Doorless
Features	Front and Rear Access
Material	Metal, Steel
Mounting Rails	Two Pair
Number of Units	25 U
Shipping Info	Drop shipped from the Manufacturer's Warehouse
Style	Open Rack, Double Frame
Type	Sloping Console
Weight	52.2 kg
Weight	115 lbs

Part	Color	Ventilation	Material	For Use With/Related Products	Weight	Weight	Type [custom]	Type [custom]	Features	Mounting Rails	Type	Number of Units	Dimensions - Panel [z]	Dimensions - Panel [z]	Dimensions - Panel [y]	Dimensions - Panel [x]	Dimensions - Panel [y]	Dimensions - Panel [x]	Shipping Info	Style	Door	Dimensions - Overall [x]	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [y]	Dimensions - Panel [y]	Dimensions - Panel [z]	Weight
Hammond Manufacturing 1564TCP17BK1	Black	Non-Vented	Metal Steel	1564A2 Frames	2.3 kg	5 lbs	Top Console Panel	Side
Hammond Manufacturing 1564A2BK1	Black		Metal Steel						Front and Rear Access	Two Pair	Sloping Console	25 U	1071.63 mm	42.19 in	19.06 in	444.5 mm	484.12 mm	17.5 "	Drop shipped from the Manufacturer's Warehouse	Open Rack Double Frame	Doorless	622.3 mm	22.56 in	1244.6 mm	49 "	24.5 "	573.02 mm
Hammond Manufacturing 1564CB1924BK1	Black	Non-Vented	Metal Steel	1564B2 Frames	4.1 kg	9 lbs			Angle 15°		Top Console Tilt Base
Hammond Manufacturing 1564CB1917BK1	Black	Non-Vented	Metal Steel	1564A2 Frames	3.2 kg	7 lbs			Angle 15°		Top Console Tilt Base
Hammond Manufacturing 1564BPBK1	Black	Non-Vented	Metal Steel	1564B2 Frames	13.6 kg	30 lbs					Panel Side
Hammond Manufacturing 1564B2BK1	Black		Metal Steel		115 lbs				Front and Rear Access	Two Pair	Sloping Console	25 U		42.19 in	19.06 in	622.3 mm		24.5 in	Drop shipped from the Manufacturer's Warehouse	Open Rack Double Frame	Doorless	622.3 mm	22.56 in	1244.6 mm	49 "	24.5 "	573.02 mm	484.12 mm	1071.63 mm	52.2 kg

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Metal, Steel Sloping Console Open Rack, Double Frame 24.500" L x 22.560" W x 49.000" H (622.30mm x 573.02mm x 1244.60mm) Black
