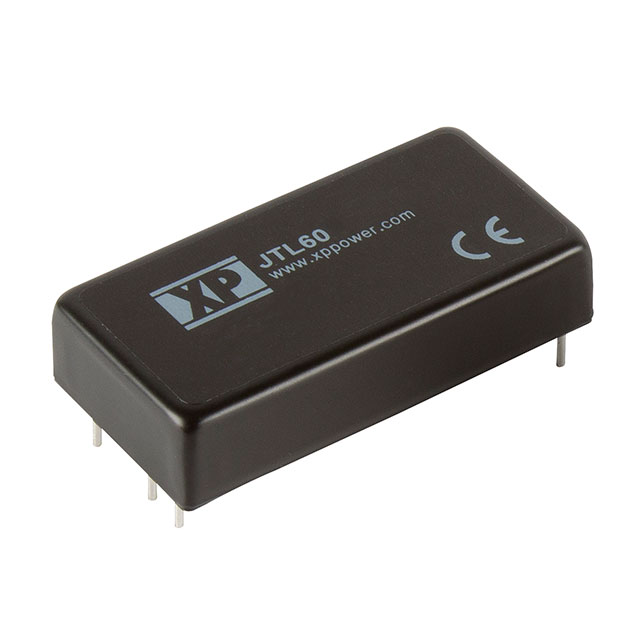

JTL6048D12

Active

XP POWER

DIP-6 ISOLATED POWER MODULES ROHS

Search across all available documentation for this part.

Active

XP POWER

DIP-6 ISOLATED POWER MODULES ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Package / Case	Power (Watts)	Control Features	Efficiency	Voltage - Input (Min) [Min]	Type	Voltage - Output 1	Features	Applications	Voltage - Isolation	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 2
XP POWER JTL6048S05	85 °C	-40 °C	62368-1	6-DIP Module	60 W	Active High Enable	93 %	18 V	Isolated Module	5 V	OVP Remote On/Off SCP	ITE (Commercial)	1.6 kV	12 A	1	75 V	Through Hole
XP POWER JTL6048D12	85 °C	-40 °C	62368-1	6-DIP Module	60 W	Active High Enable	91 %	18 V	Isolated Module	12 V	OVP Remote On/Off SCP	ITE (Commercial)	1.6 kV		2	75 V	Through Hole	2.5 A	2.5 A	-12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 2.5A, 2.5A 18V - 75V Input
