71M6531F-DB

Unknown

Analog Devices Inc./Maxim Integrated

BOARD DEMO 71M6531F

Search across all available documentation for this part.

Unknown

Analog Devices Inc./Maxim Integrated

BOARD DEMO 71M6531F

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage - I/O High	Meter Type	Measurement Error	Package / Case	Supplier Device Package	Voltage - I/O Low	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Input Impedance [Max]	Input Impedance [Min]	Utilized IC / Part	Primary Attributes	Supplied Contents	Function	Contents	Type
Analog Devices Inc./Maxim Integrated 71M6531F-IMR/F	Surface Mount	2 V	Dual Phase Single Phase	0.1 %	68-VFQFN Exposed Pad	68-SQFN (8x8)	0.8 V	85 °C	-40 °C	3 V	3.6 V	90 kOhm	40 kOhm
Analog Devices Inc./Maxim Integrated 71M6531D-IM/F	Surface Mount	2 V	Dual Phase Single Phase	0.1 %	68-VFQFN Exposed Pad	68-SQFN (8x8)	0.8 V	85 °C	-40 °C	3 V	3.6 V	90 kOhm	40 kOhm
Analog Devices Inc./Maxim Integrated 71M6531F-DB														71M6531	Single Phase Power Meter	Board(s) Cable(s) Power Supply	Energy/Power Meter	Board(s) Cable(s) Power Supply	Power Management

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

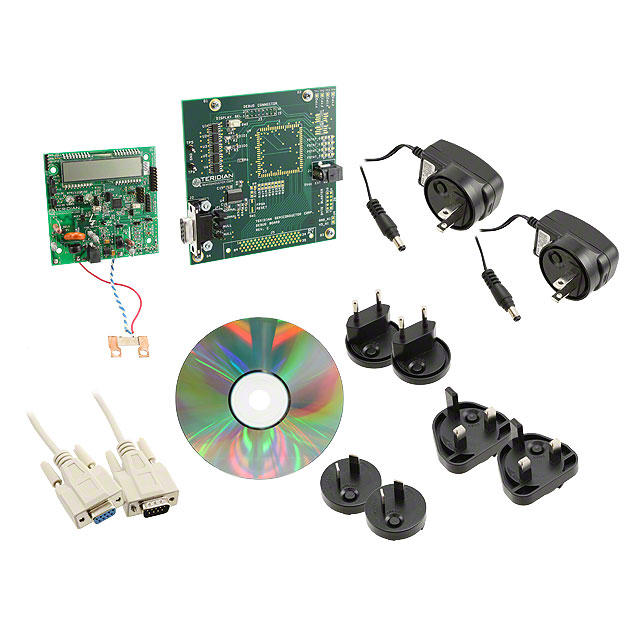

71M6531 Energy/Power Meter Power Management Evaluation Board

Technical documentation and resources

No documents available
