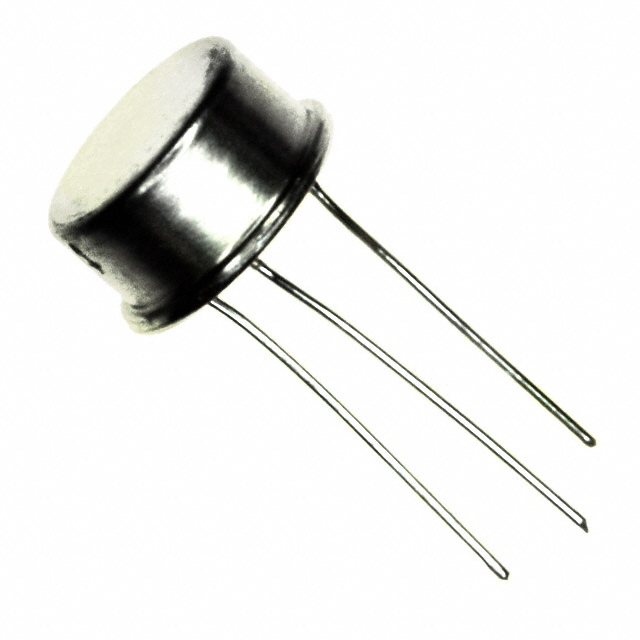

SG137AIG-883B

Obsolete

Microsemi Corporation

IC REG LIN NEG ADJ 1.5A TO257

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

IC REG LIN NEG ADJ 1.5A TO257

Technical Specifications

Parameters and characteristics for this part

Specification	SG137AIG-883B

Current - Output	1.5 A
Grade	Military
Mounting Type	Through Hole
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Output Configuration	Negative
Output Type	Adjustable
Package / Case	TO-257-3
Protection Features	Over Voltage, Over Current, Over Temperature
PSRR [Max]	80 dB
PSRR [Min]	66 dB
Qualification	MIL-STD-883
Supplier Device Package	TO-257
Voltage - Input (Max) [Max]	-36 V
Voltage - Output (Max) [Max]	-36 V
Voltage - Output (Min/Fixed)	-1.25 V

Part	Voltage - Input (Max) [Max]	Output Configuration	Voltage - Output (Min/Fixed)	Mounting Type	Voltage - Output (Max) [Max]	Output Type	Grade	Number of Regulators	Package / Case	PSRR [Min]	PSRR [Max]	Qualification	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Protection Features
Microsemi Corporation SG137AIG-883B	-36 V	Negative	-1.25 V	Through Hole	-36 V	Adjustable	Military	1	TO-257-3	66 dB	80 dB	MIL-STD-883	1.5 A	-55 °C	125 °C	TO-257	Over Current Over Temperature Over Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Negative Adjustable 1 Output 1.5A TO-257
