C0452A.41.10

Active

Prysmian Group

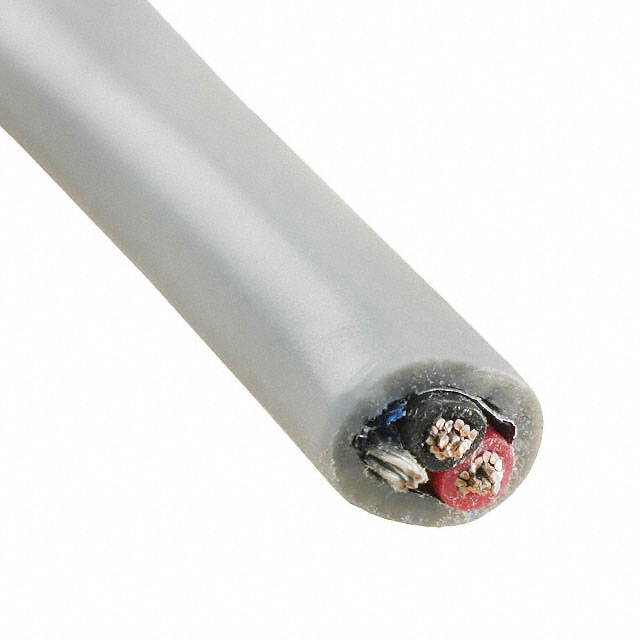

CABLE 2COND 20AWG GRAY SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 20AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	C0452A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter	0.207 in
Jacket (Insulation) Diameter	5.26 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Conductor Insulation	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Conductor Material	Features	Jacket (Insulation) Material	Voltage	Ratings	Jacket Color	Wire Gauge	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Usage	Cable Type
Prysmian Group C0452A.41.10	100 %	0.94 mm	0.037 in	Foil	Poly-Vinyl Chloride (PVC)	Flexfoil®	28	7	1000 ft	304.8 m	-20 C	105 ░C	2	Copper Annealed Tinned	Drain Wire	Poly-Vinyl Chloride (PVC)	300 V	ASTM B-33	Gray	20 AWG	0.207 in	5.26 mm	Communication Control	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Gray 20 AWG Foil 1000.0' (304.8m)
