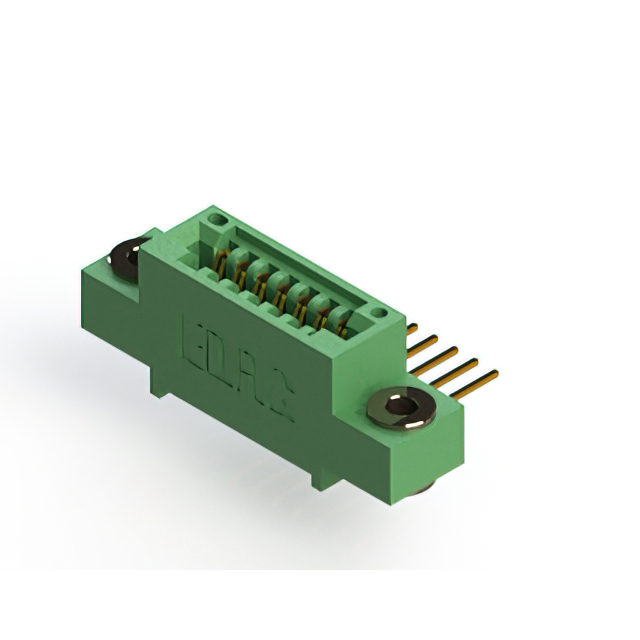

845-007-559-403
ActiveEDAC Inc.
CONN EDGE SINGLE FML 7POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-007-559-403
ActiveEDAC Inc.
CONN EDGE SINGLE FML 7POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-007-559-403 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 7 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
845-007 Series
...
| Part | Termination | Contact Finish Thickness | Contact Finish Thickness | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Number of Positions/Bay/Row [custom] | Color | Number of Positions | Flange Feature | Flange Feature | Number of Rows | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Type | Material - Insulation | Gender | Pitch [x] | Pitch [x] | Contact Finish | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 7 | Green | 7 | 3.25 mm | 0.128 in | 1 | 1 | 125 °C | -40 °C | Through Hole | Cantilever | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Gold | Copper Alloy | |||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 7 | Green | 7 | 3.25 mm | 0.128 in | 1 | 1 | 125 °C | -40 °C | Through Hole | Cantilever | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Gold | Copper Alloy | Side Mount Opening Unthreaded | ||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 7 | Green | 7 | 1 | 1 | 125 °C | -40 °C | Through Hole Right Angle | Cantilever | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Gold | Copper Alloy | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Wire Wrap | 10 Áin | 0.25 Ám | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 7 | Green | 7 | 1 | 1 | 125 °C | -40 °C | Through Hole | Cantilever | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Gold | Copper Alloy | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | ||
EDAC Inc. | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 7 | Green | 7 | 1 | 1 | 125 °C | -40 °C | Through Hole | Cantilever | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Gold | Copper Alloy | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | ||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 7 | Green | 7 | 3.25 mm | 0.128 in | 1 | 1 | 125 °C | -40 °C | Through Hole Right Angle | Cantilever | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Gold | Copper Alloy | |||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 7 | Green | 7 | 1 | 1 | 125 °C | -40 °C | Through Hole Right Angle | Cantilever | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Gold | Copper Alloy | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | ||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 7 | Green | 7 | 1 | 1 | 125 °C | -40 °C | Through Hole | Cantilever | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Gold | Copper Alloy | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 7 | Green | 7 | 3.25 mm | 0.128 in | 1 | 1 | 125 °C | -40 °C | Through Hole Right Angle | Cantilever | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Gold | Copper Alloy | |||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 7 | Green | 7 | 3.25 mm | 0.128 in | 1 | 1 | 125 °C | -40 °C | Through Hole | Cantilever | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Gold | Copper Alloy | Side Mount Opening Unthreaded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-007 Series
7 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
