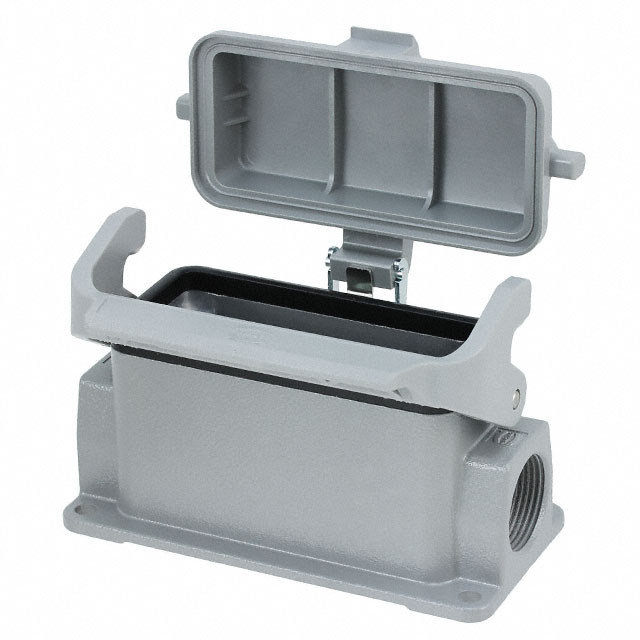

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, SIDE ENTRY, ALUMINUM BODY, 1 LEVER, 16B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Drawing EN +2

19300161296

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, SIDE ENTRY, ALUMINUM BODY, 1 LEVER, 16B

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Drawing EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300161296

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	4.606 "
Size / Dimension [x]	117 mm
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	56 mm
Size / Dimension [z]	2.205 in
Style	Side Entry
Thread Size	M25

19300161 Series

Part	Ingress Protection	Housing Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Size	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Thread Size	Housing Material	Lock Location	Style	Housing Finish	Features
HARTING Technology Group 19300161121	IP65 - Dust Tight Water Resistant	Gray	Hood - Panel Mount	125 °C	-40 °C	16 B	2.776 "	3.165 in	80.4 mm	5.551 in	70.5 mm	141 mm	M32	Aluminum Die Cast	Locking Clip (2) on Hood	Top Entry	Powder Coated
HARTING Technology Group 19300161512
HARTING Technology Group 19300161266	IP65 - Dust Tight Water Resistant	Gray	Base - Box Mount	125 °C	-40 °C	16 B	2.244 "	2.205 in	56 mm	4.606 "	57 mm	117 mm	M25	Aluminum Die Cast	Locking Clip (2) on Hood	Side Entry	Powder Coated
HARTING Technology Group 19300161261			Base - Box Mount			16 B	2.244 "	2.205 in	56 mm	4.606 "	57 mm	117 mm	M25		Locking Clip (2) on Hood	Side Entry		Feed Through
HARTING Technology Group 19300161231	IP65 - Dust Tight Water Resistant	Gray	Base - Box Mount	125 °C	-40 °C	16 B	2.244 "	2.205 in	56 mm	4.606 "	57 mm	117 mm	M25	Aluminum Die Cast	Locking Clip (2) on Base Bottom	Side Entry	Powder Coated
HARTING Technology Group 19300161401	IP65 IP66 IP67	Red	Hood	125 °C	-40 °C	16 B							M25	Aluminum Die Cast	Locking Clip (2) on Base Bottom	Top Entry
HARTING Technology Group 19300161503
HARTING Technology Group 19300161296	IP65 - Dust Tight Water Resistant	Gray	Base - Box Mount	125 °C	-40 °C	16 B	2.244 "	2.205 in	56 mm	4.606 "	57 mm	117 mm	M25	Aluminum Die Cast	Locking Clip (1) on Base Bottom	Side Entry	Powder Coated
HARTING Technology Group 19300161542	IP65 - Dust Tight Water Resistant	Gray	Hood	125 °C	-40 °C	16 B	1.693 in	2.461 in	62.5 mm	3.681 "	43 mm	93.5 mm	M32	Aluminum Die Cast	Locking Clip (1) on Base Bottom	Side Entry	Powder Coated
HARTING Technology Group 19300161131	IP65 - Dust Tight Water Resistant	Gray	Hood - Panel Mount	125 °C	-40 °C	16 B	2.776 "	3.165 in	80.4 mm	5.551 in	70.5 mm	141 mm	M32	Aluminum Die Cast	Locking Clip (1) on Hood	Top Entry	Powder Coated
