830-10-017-20-001101

Active

PRECI-DIP SA

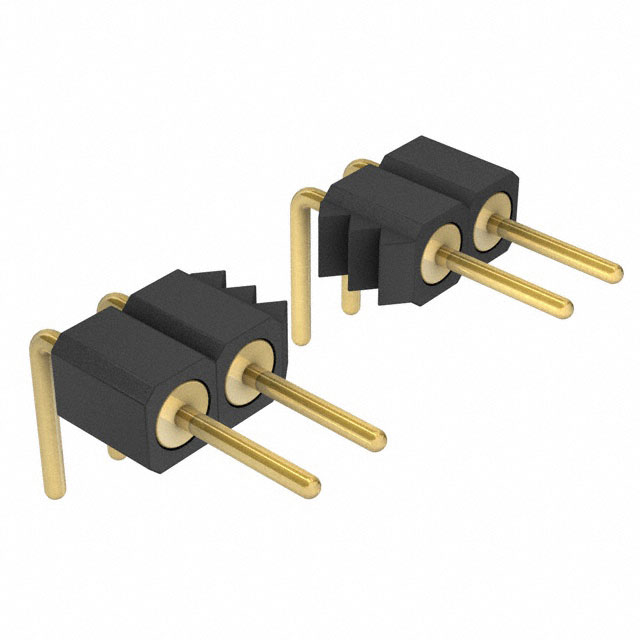

CONN HEADER R/A 17POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

830-10-017-20-001101

Active

PRECI-DIP SA

CONN HEADER R/A 17POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	830-10-017-20-001101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.087 "
Insulation Height	2.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

830-10 Series

...

Part	Mounting Type	Connector Type	Current Rating (Amps)	Contact Finish - Post	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Number of Rows	Contact Finish - Mating	Termination	Insulation Color	Contact Length - Post	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Fastening Type	Features	Number of Positions	Number of Positions	Contact Length - Post	Overall Contact Length	Overall Contact Length
PRECI-DIP SA 830-10-017-20-001101	Through Hole Right Angle	Header	3 A	Gold	Circular	10 çin	0.25 çm	150 VDC	Unshrouded	0.079 in	2 mm	Brass	1	Gold	Solder	Black	3.2 mm	0.126 in	-55 °C	125 °C	Male Pin	10 çin	0.25 çm	0.141 in	3.6 mm	0.087 "	2.2 mm	UL94 V-0	All	Push-Pull
PRECI-DIP SA 830-10-016-30-001191	Surface Mount	Header	3 A	Gold	Circular	10 çin	0.25 çm	150 VDC	Unshrouded	0.079 in	2 mm	Brass	1	Gold	Solder	Black			-55 °C	125 °C	Male Pin	10 çin	0.25 çm	0.141 in	3.6 mm			UL94 V-0	All	Push-Pull	Pick and Place	16
PRECI-DIP SA 830-10-015-30-001101	Surface Mount	Header	3 A	Gold	Circular	10 çin	0.25 çm	150 VDC	Unshrouded	0.079 in	2 mm	Brass	1	Gold	Solder	Black			-55 °C	125 °C	Male Pin	10 çin	0.25 çm	0.141 in	3.6 mm			UL94 V-0	All	Push-Pull			15
PRECI-DIP SA 830-10-022-40-001101	Surface Mount Right Angle	Header	3 A	Gold	Circular	10 çin	0.25 çm	150 VDC	Unshrouded	0.079 in	2 mm	Brass	1	Gold	Solder	Black			-55 °C	125 °C	Male Pin	10 çin	0.25 çm	0.141 in	3.6 mm	0.087 "	2.2 mm	UL94 V-0	All	Push-Pull			22 positions
PRECI-DIP SA 830-10-031-10-001101	Through Hole	Header	3 A	Gold	Circular	10 çin	0.25 çm	150 VDC	Unshrouded	0.079 in	2 mm	Brass	1	Gold	Solder	Black	2.9 mm		-55 °C	125 °C	Male Pin	10 çin	0.25 çm	0.141 in	3.6 mm			UL94 V-0	All	Push-Pull			31	0.114 in	10 mm	0.394 in
PRECI-DIP SA 830-10-011-40-001191	Surface Mount Right Angle	Header	3 A	Gold	Circular	10 çin	0.25 çm	150 VDC	Unshrouded	0.079 in	2 mm	Brass	1	Gold	Solder	Black			-55 °C	125 °C	Male Pin	10 çin	0.25 çm	0.141 in	3.6 mm	0.087 "	2.2 mm	UL94 V-0	All	Push-Pull			11
PRECI-DIP SA 830-10-005-30-001191	Surface Mount	Header	3 A	Gold	Circular	10 çin	0.25 çm	150 VDC	Unshrouded	0.079 in	2 mm	Brass	1	Gold	Solder	Black			-55 °C	125 °C	Male Pin	10 çin	0.25 çm	0.141 in	3.6 mm			UL94 V-0	All	Push-Pull	Pick and Place
PRECI-DIP SA 830-10-039-30-001101	Surface Mount	Header	3 A	Gold	Circular	10 çin	0.25 çm	150 VDC	Unshrouded	0.079 in	2 mm	Brass	1	Gold	Solder	Black			-55 °C	125 °C	Male Pin	10 çin	0.25 çm	0.141 in	3.6 mm			UL94 V-0	All	Push-Pull			39
PRECI-DIP SA 830-10-004-30-001101	Surface Mount	Header	3 A	Gold	Circular	10 çin	0.25 çm	150 VDC	Unshrouded	0.079 in	2 mm	Brass	1	Gold	Solder	Black			-55 °C	125 °C	Male Pin	10 çin	0.25 çm	0.141 in	3.6 mm			UL94 V-0	All	Push-Pull			4
PRECI-DIP SA 830-10-015-30-001191	Surface Mount	Header	3 A	Gold	Circular	10 çin	0.25 çm	150 VDC	Unshrouded	0.079 in	2 mm	Brass	1	Gold	Solder	Black			-55 °C	125 °C	Male Pin	10 çin	0.25 çm	0.141 in	3.6 mm			UL94 V-0	All	Push-Pull	Pick and Place		15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 3.05

Description

General part information

830-10 Series

Connector Header Through Hole, Right Angle 17 position 0.079" (2.00mm)
