0355642015
LTBMolex

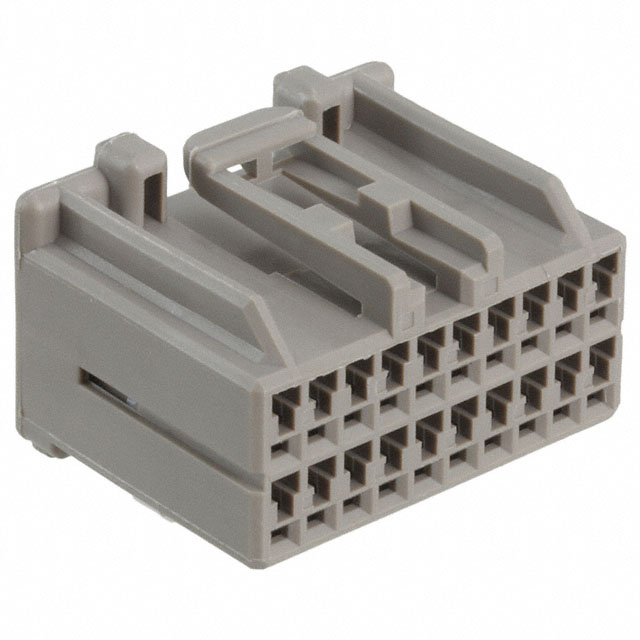

CONN RCPT HSG 20POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
0355642015
LTBMolex
CONN RCPT HSG 20POS 2.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0355642015 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Polyester |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Row Spacing | 0.205 in |
| Row Spacing | 5.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 4000 | $ 1.11 | |
Description
General part information
035564 Series
20 Rectangular Connectors - Housings Receptacle Gray 0.098" (2.50mm)
