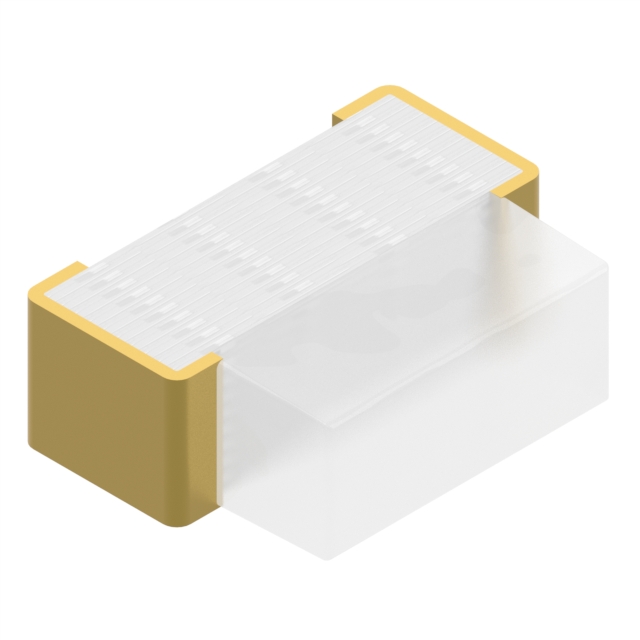

SMLA12WBN7W1 - SMLA12BN8TT86

SMLA12WBN7W1

Active
Rohm Semiconductor

LED, WHITE, 56MCD, 2.9V, 1611 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Use LTspice® Models: Tips for Improving ConvergenceThermal Resistance of LEDs+19
SMLA12WBN7W1 - SMLA12BN8TT86

SMLA12WBN7W1

Active
Rohm Semiconductor

LED, WHITE, 56MCD, 2.9V, 1611 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsHow to Use LTspice® Models: Tips for Improving ConvergenceThermal Resistance of LEDs+19

Technical Specifications

Parameters and characteristics for this part

SpecificationSMLA12WBN7W1
ColorWhite
Current - Test5 mA
Height (Max) [Max]1.25 mm
Lens ColorWhite
Lens Size [x]1.2 mm
Lens Size [y]0.55 mm
Lens StyleRectangle with Flat Top
Lens TransparencyClear
Millicandela Rating56 mcd
Mounting TypeSurface Mount
Package / Case2-SMD, No Lead
Size / Dimension [x]1.6 mm
Size / Dimension [y]0.55 mm
Supplier Device PackageSMD
Voltage - Forward (Vf) (Typ)2.9 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyStrip 1$ 1.05
10$ 0.66
100$ 0.49
500$ 0.45
1000$ 0.37
3000$ 0.35
6000$ 0.35
12000$ 0.34
27000$ 0.33
NewarkEach (Supplied on Cut Tape) 1$ 1.14
10$ 0.81
25$ 0.74
50$ 0.67
100$ 0.60
250$ 0.55
500$ 0.50
1000$ 0.47

Description

General part information

SMLA12WBN7W Series

SML-A1 series is a small side-emitting chip LED.
