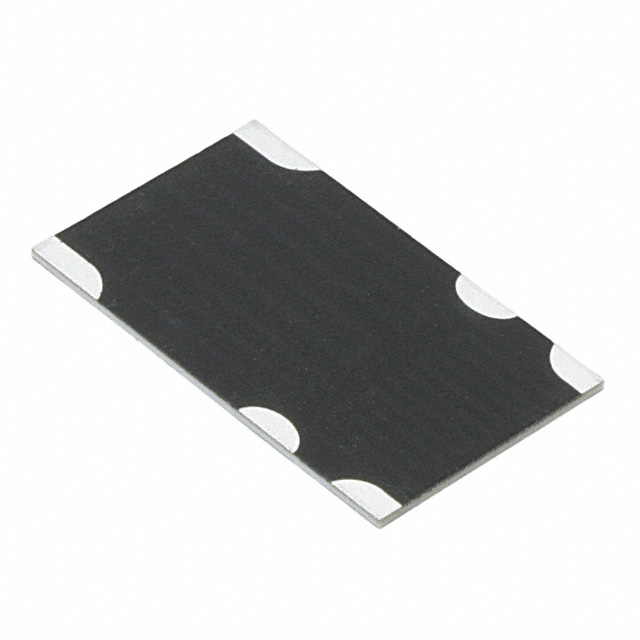

ANT2112A010B0918A

Active

Pulse Electronics

RF ANT 900MHZ/1.8GHZ CHIP SLD

Search across all available documentation for this part.

Active

Pulse Electronics

RF ANT 900MHZ/1.8GHZ CHIP SLD

Technical Specifications

Parameters and characteristics for this part

Specification	ANT2112A010B0918A

Antenna Type	Chip
Frequency (Center/Band) [custom]	900 MHz
Frequency (Center/Band) [custom]	1.8 GHz
Frequency Range [Max]	1.885 GHz, 915 MHz
Frequency Range [Min]	885 MHz, 1.715 GHz
Gain	1 dBi, 0.5 dBi
Height (Max) [Max]	0.5 mm
Height (Max) [Max]	0.02 in
Mounting Type	Surface Mount
Number of Bands	2
Power - Max [Max]	4 W
Return Loss	-9.217 dB, -6.543 dB
Termination	Solder

Part	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Number of Bands	Power - Max [Max]	Frequency Range [Max]	Frequency Range [Min]	Termination	Gain	Return Loss	Frequency (Center/Band) [custom]	Frequency (Center/Band) [custom]
Pulse Electronics ANT2112A010B0918A	Chip	0.5 mm	0.02 in	Surface Mount	2	4 W	1.885 GHz 915 MHz	1.715 GHz 885 MHz	Solder	0.5 dBi 1 dBi	-9.217 dB -6.543 dB	900 MHz	1.8 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Chip Solder Surface Mount
