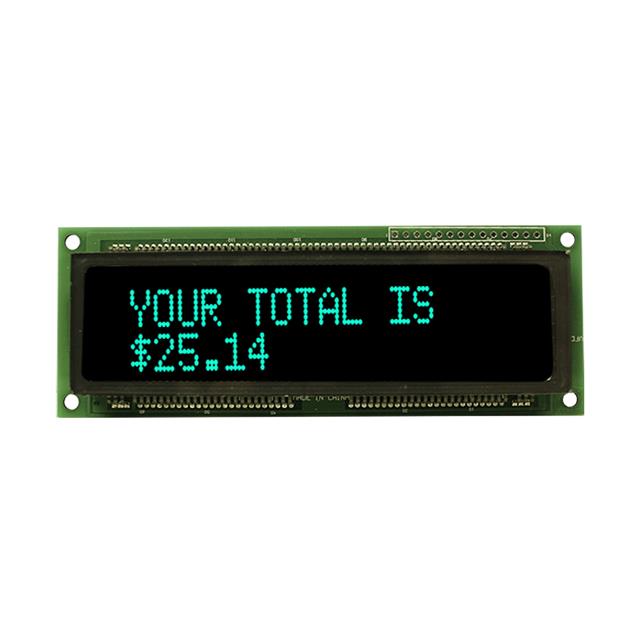

M0216MD-162MDBR2-J
ActiveNewhaven Display Intl
MODULE VF CHAR 2X16 9.22MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M0216MD-162MDBR2-J
ActiveNewhaven Display Intl
MODULE VF CHAR 2X16 9.22MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M0216MD-162MDBR2-J |
|---|---|
| Character Size [y] | 3.85 mm |
| Character Size [z] | 9.22 mm |
| Controller Type | PT6314 |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Type | Character |
| Format | CURS |
| Format [x] | 5 Dots |
| Format [y] | 7 |
| Interface | Parallel/Serial |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 122 mm |
| Outline L x W x H [y] | 44 mm |
| Outline L x W x H [z] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 56.31 | |
| 5 | $ 52.93 | |||
| 10 | $ 49.55 | |||
| 50 | $ 46.74 | |||
| 100 | $ 45.21 | |||
Description
General part information
M0216MD Series
Vacuum Fluorescent Display (VFD) 16 x 2 Character 5V Parallel/Serial 122.00mm x 44.00mm x 20.00mm
