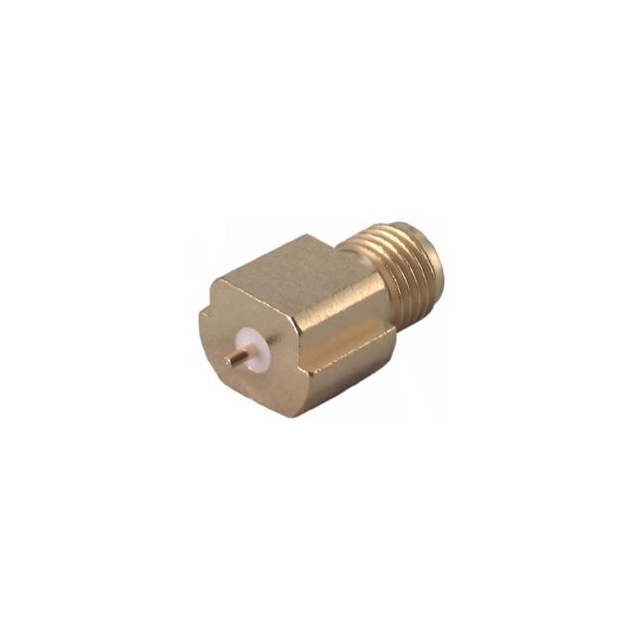

82_SMA-S50-0-45/111_NE

Active

Huber+Suhner, Inc.

RF COAX CONN, JACK, PCB, 50 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

RF COAX CONN, JACK, PCB, 50 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	82_SMA-S50-0-45/111_NE

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Body Material	Housing Color	Connector Type	Shield Termination	Number of Ports	Mounting Type	Mating Cycles	Center Contact Plating	Dielectric Material	Body Finish	Impedance	Contact Termination	Center Contact Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style
Huber+Suhner, Inc. 82_SMA-S50-0-45/111_NE	Brass	Gold	Female Socket Jack	Solder	1	Board Edge Cutout Surface Mount	500	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Solder	Beryllium Copper	18 GHz	-65 ░C	165 °C	SMA
Huber+Suhner, Inc. 82_SMA-S50-0-45/111_NM	Brass	Gold	Female Socket Jack	Solder	1	Board Edge Cutout Surface Mount	500	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Solder	Beryllium Copper Brass	18 GHz	-65 ░C	165 °C	SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
