20FMN-BMTTR-A-TB
ActiveJST Sales America Inc.

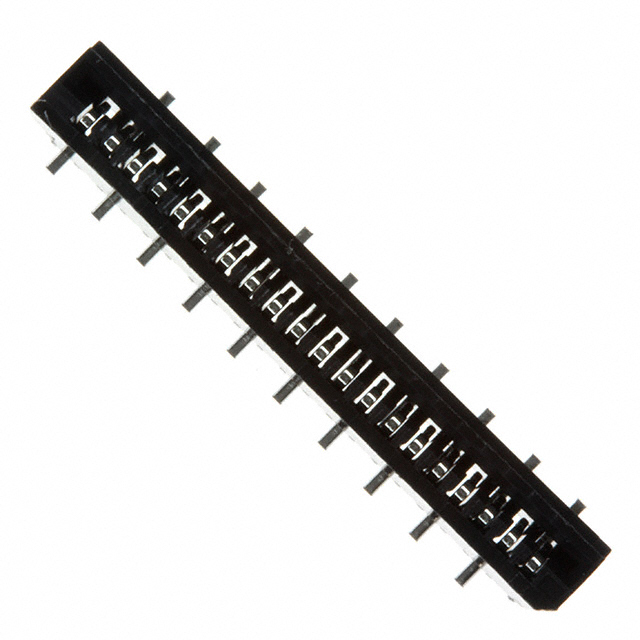

CONN FFC VERT 20POS 1MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
20FMN-BMTTR-A-TB
ActiveJST Sales America Inc.
CONN FFC VERT 20POS 1MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 20FMN-BMTTR-A-TB |
|---|---|
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FFC |
| Height Above Board | 0.201 in |
| Height Above Board | 5.1 mm |
| Housing Color | Black |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 50 V |
20FMN-BM Series
| Part | Contact Material | Number of Positions | Housing Color | Height Above Board | Height Above Board | FFC, FCB Thickness | Termination | Contact Finish | Voltage Rating | Material Flammability Rating | Current Rating (Amps) | Flat Flex Type | Cable End Type | Features | Housing Material | Mounting Type | Connector/Contact Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | Phosphor Bronze | 20 | Black | 0.201 in | 5.1 mm | 0.3 mm | Solder | Tin | 50 V | UL94 V-0 | 0.5 A | FFC | Straight | Low Insertion Force (LIF) | Polyamide (PA6T) Nylon 6T | Surface Mount | Contacts Vertical - 1 Sided | 0.039 in | 1 mm | -25 °C | 85 °C |
JST Sales America Inc. | Phosphor Bronze | 20 | Black | 0.201 in | 5.1 mm | 0.3 mm | Solder | Tin | 50 V | UL94 V-0 | 0.5 A | FFC | Straight | Low Insertion Force (LIF) | Polyamide (PA6T) Nylon 6T | Surface Mount | Contacts Vertical - 1 Sided | 0.039 in | 1 mm | -25 °C | 85 °C |
JST Sales America Inc. | Phosphor Bronze | 20 | Black | 0.201 in | 5.1 mm | 0.3 mm | Solder | Tin | 50 V | UL94 V-0 | 0.5 A | FFC | Straight | Low Insertion Force (LIF) | Polyamide (PA6T) Nylon 6T | Surface Mount | Contacts Vertical - 1 Sided | 0.039 in | 1 mm | -25 °C | 85 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.58 | |
Description
General part information
20FMN-BM Series
20 Position FFC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
