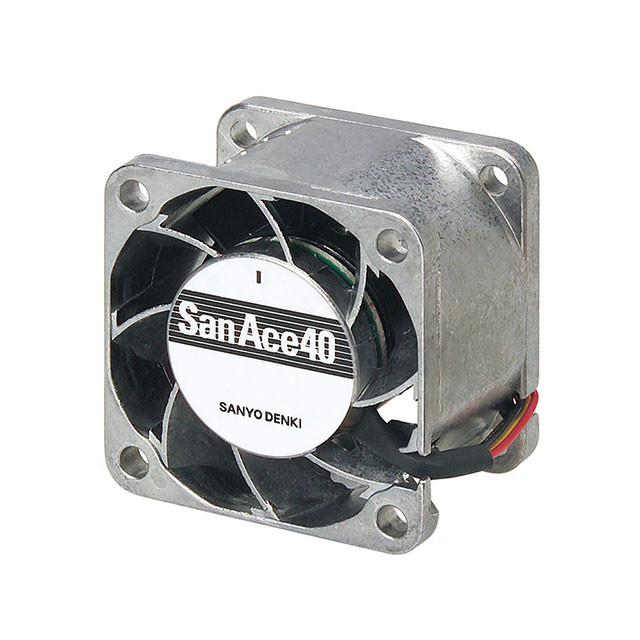

9GE0412P3K03

Active

Sanyo Denki America Inc.

FAN AXIAL 40X28MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System DC Fan +1

9GE0412P3K03

Active

Sanyo Denki America Inc.

FAN AXIAL 40X28MM 12VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System DC Fan +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GE0412P3K03

Air Flow	0.75 mł/min
Air Flow	26.8 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.84 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	58 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	10.08 W
RPM	16500 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	1.666 in H2O
Static Pressure	415 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.121 lb
Weight	54.88 g
Width [y]	28 mm

9GE0412 Series

Part	Fan Type	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Weight	Weight	RPM	Lifetime @ Temp.	Material - Frame	Width [y]	Material - Blade	Static Pressure	Static Pressure	Bearing Type	Noise	Termination	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Power (Watts)
Sanyo Denki America Inc. 9GE0412K301	Tubeaxial	0.75 mł/min	26.8 CFM	13.2 VDC	10.8 VDC	12 VDC	55.34 g	0.122 lb	16500 RPM	40000 Hrs	Aluminum	28 mm	Plastic	1.666 in H2O	415 Pa	Ball	58 dB(A)	3 Wire Leads	CSA TUV UL	60 °C	-20 °C	-20 C	60 °C	Locked Rotor Protection Speed Sensor (Tach)	0.84 A	40 mm	Square	40 mm	10.08 W
Sanyo Denki America Inc. 9GE0412J301	Tubeaxial	0.683 m³/min	24.4 CFM	13.2 VDC	10.8 VDC	12 VDC	55.34 g	0.122 lb	15000 RPM	40000 Hrs	Aluminum	28 mm	Plastic	1.378 in H2O	343.2 Pa	Ball	56 dB	3 Wire Leads	CSA TUV UL	60 °C	-20 °C	-20 C	60 °C	Speed Sensor (Tach)	650 mA	40 mm	Square	40 mm	7.8 W
Sanyo Denki America Inc. 9GE0412P3G03	Tubeaxial	0.594 m³/min	21.2 CFM	13.2 VDC	10.8 VDC	12 VDC	54.88 g	0.121 lb	13000 RPM	40000 Hrs	Aluminum	28 mm	Plastic	1.044 in H2O	260 Pa	Ball	52 dB	4 Wire Leads	CSA TUV UL	60 °C	-20 °C	-20 C	60 °C	PWM Control Speed Sensor (Tach)	0.47 A	40 mm	Square	40 mm	5.64 W
Sanyo Denki America Inc. 9GE0412P3J03	Tubeaxial	0.683 m³/min	24.4 CFM	13.2 VDC	10.8 VDC	12 VDC	54.88 g	0.121 lb	15000 RPM	40000 Hrs	Aluminum	28 mm	Plastic	1.378 in H2O	343.2 Pa	Ball	56 dB	4 Wire Leads	CSA TUV UL	60 °C	-20 °C	-20 C	60 °C	PWM Control Speed Sensor (Tach)	650 mA	40 mm	Square	40 mm	7.8 W
Sanyo Denki America Inc. 9GE0412P3K03	Tubeaxial	0.75 mł/min	26.8 CFM	13.2 VDC	10.8 VDC	12 VDC	54.88 g	0.121 lb	16500 RPM	40000 Hrs	Aluminum	28 mm	Plastic	1.666 in H2O	415 Pa	Ball	58 dB(A)	4 Wire Leads	CSA TUV UL	60 °C	-20 °C	-20 C	60 °C	PWM Control Speed Sensor (Tach)	0.84 A	40 mm	Square	40 mm	10.08 W
Sanyo Denki America Inc. 9GE0412K3D01	Tubeaxial	0.75 mł/min	26.8 CFM	13.2 VDC	10.8 VDC	12 VDC	55.34 g	0.122 lb	16500 RPM	40000 Hrs	Aluminum	28 mm	Plastic	1.666 in H2O	415 Pa	Ball	58 dB(A)	3 Wire Leads	CSA TUV UL	60 °C	-20 °C	-20 C	60 °C	Locked Rotor Sensor	0.84 A	40 mm	Square	40 mm	10.08 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.63
		10	$ 17.50
		25	$ 16.72
		50	$ 16.15
		126	$ 15.42
		252	$ 14.90
		504	$ 14.39

Description

General part information

9GE0412 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 26.8 CFM (0.750m³/min) 4 Wire Leads
