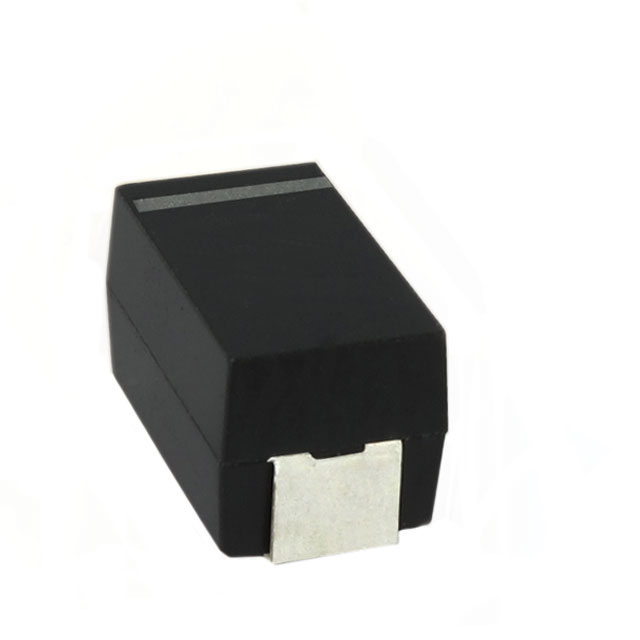

ECASD91A107M010K00

Obsolete

Murata Power Solutions Inc.

CAP ALUM POLY 100UF 20% 10V SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CAP ALUM POLY 100UF 20% 10V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ECASD91A107M010K00

Applications	General Purpose
Capacitance	100 µF
ESR (Equivalent Series Resistance)	10 mOhm
Height - Seated (Max)	4.2 mm
Height - Seated (Max) [Max]	0.165 in
Lifetime @ Temp.	1000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	7343 Metric
Package / Case	2917
Ripple Current @ High Frequency	3 A
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Surface Mount Land Size [x]	0.287 "
Surface Mount Land Size [x]	7.3 mm
Surface Mount Land Size [y]	4.3 mm
Surface Mount Land Size [y]	0.169 "
Tolerance	20 %
Type	Polymer
Voltage - Rated	10 V

Part	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Tolerance	Capacitance	Ripple Current @ High Frequency	Type	Package / Case	Package / Case	Applications	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type
Murata Power Solutions Inc. ECASD91A107M010K00	10 mOhm	-40 °C	105 ░C	1000 Hrs	10 V	0.287 "	4.3 mm	0.169 "	7.3 mm	20 %	100 µF	3 A	Polymer	7343 Metric	2917	General Purpose	0.165 in	4.2 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount
Murata Power Solutions Inc. ECASD91A157M010K00	10 mOhm	-40 °C	105 ░C	1000 Hrs	10 V	0.287 "	4.3 mm	0.169 "	7.3 mm	20 %	150 µF	3 A	Polymer	7343 Metric	2917	General Purpose	0.165 in	4.2 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 µF 10 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 10mOhm 1000 Hrs @ 105°C
