0151680876

Active

Molex

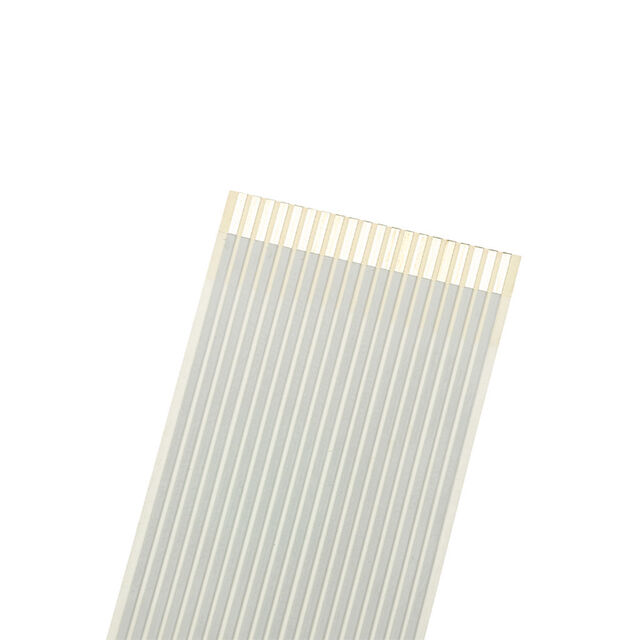

CABLE FFC 19POS 1.25MM 1.18"

Search across all available documentation for this part.

Active

Molex

CABLE FFC 19POS 1.25MM 1.18"

Technical Specifications

Parameters and characteristics for this part

Specification	0151680876

Cable Type	FPC, FFC
Length	29.97 mm
Length	1.18 in
Length - Exposed Ends [x]	0.197 in
Length - Exposed Ends [x]	5 mm
Number of Conductors	19
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Termination Style	Top on One Side, Bottom on Other, Backers on Both Sides

...

Part	Length	Length [x]	Pitch [x]	Pitch [x]	Cable Type	Length	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Termination Style
Molex 0151680210	304.8 mm	12 in	0.049 in	1.25 mm	FFC FPC
Molex 0151680753	127 mm		0.049 in	1.25 mm	FFC FPC	5 in	0.197 in	5 mm	7	Backers on Both Sides Top on Both Sides
Molex 0151680181	203.2 mm		0.049 in	1.25 mm	FFC FPC	8 in	0.197 in	5 mm	12	Backers on Both Sides Top on Both Sides
Molex 0151680271
Molex 0151680257	50.8 mm		0.049 in	1.25 mm	FFC FPC	2 in	0.197 in	5 mm	20	Backers on Both Sides Top on Both Sides
Molex 0151680869	203.2 mm		0.049 in	1.25 mm	FFC FPC	8 in	0.197 in	5 mm	17	Backers on Both Sides Top on Both Sides
Molex 0151680876	29.97 mm		0.049 in	1.25 mm	FFC FPC	1.18 in	0.197 in	5 mm	19	Top on One Side Bottom on Other Backers on Both Sides
Molex 0151680942	29.97 mm		0.049 in	1.25 mm	FFC FPC	1.18 in	0.197 in	5 mm	25	Top on One Side Bottom on Other Backers on Both Sides
Molex 0151680202
Molex 0151680812	50.8 mm		0.049 in	1.25 mm	FFC FPC	2 in	0.197 in	5 mm	13	Top on One Side Bottom on Other Backers on Both Sides

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.25

General part information

19 Position FFC, FPC Cable 0.049" (1.25mm) 1.180" (29.97mm)

Technical documentation and resources
