09162723001

Active

HARTING Technology Group

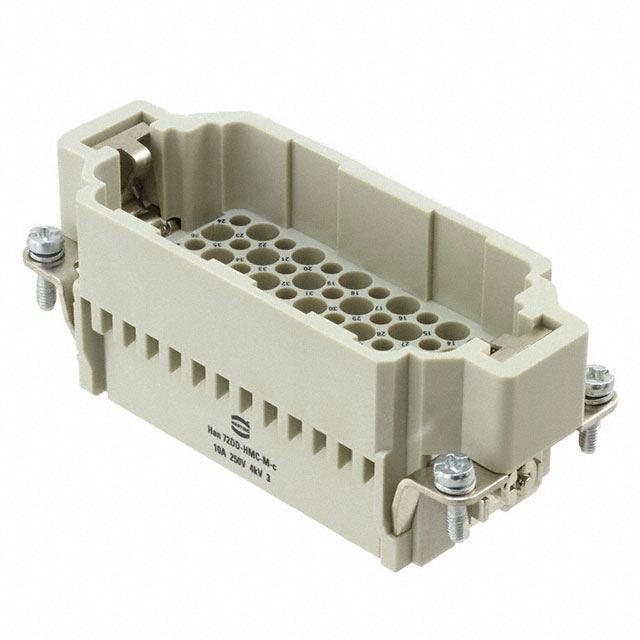

HEAVY DUTY CONNECTOR, 72+PE, LESS CONTACTS, HAN DD HMC SERIES, INSERT, 73 CONTACTS, 16B, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Catalogue EN

09162723001

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, 72+PE, LESS CONTACTS, HAN DD HMC SERIES, INSERT, 73 CONTACTS, 16B, PLUG

Deep-Dive with AI

DocumentsDatasheet Manufacturer Catalogue EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09162723001

Connector Type	Insert without Contacts
Contact Type	Han® High Temp
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Termination Style	Crimp
Voltage Rating	250 VDC

09162723 Series

Part	Current Rating (Amps)	Housing Material	Termination Style	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Size	Contact Type	Material Flammability Rating	Connector Type
HARTING Technology Group 09162723001	10 A	Polycarbonate (PC)	Crimp	Male	125 °C	-40 °C	250 VDC	16 B	Han® High Temp	UL94 V-0	Insert without Contacts
HARTING Technology Group 09162723101	10 A	Polycarbonate (PC)	Crimp	Female	125 °C	-40 °C	250 VDC	16 B	Han® High Temp	UL94 V-0	Insert without Contacts

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 76.14
		10	$ 57.22
		100	$ 45.07
Newark	Each	1	$ 56.52
		5	$ 55.94
		10	$ 55.35
		25	$ 52.13
		50	$ 48.91

Description

General part information

09162723 Series

The 09162723001 from Harting is a 16 B size, Han® 72 DD HMC (High Mating Cycles) male insert with crimp termination. Suitable for hoods/housings of Han® B HMC series.
