P50E-052P1-SR1-EA

Active

3M (TC)

80000906620 P50E-052P1-SR1-EA=PAK50 CONNECTOR/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P50E-052P1-SR1-EA

Active

3M (TC)

80000906620 P50E-052P1-SR1-EA=PAK50 CONNECTOR/ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P50E-052P1-SR1-EA

Connector Type	Plug
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Type	Center Strip Contact
Current Rating (Amps)	0.5 A
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	52
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

P50E Series

Part	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Connector Type	Termination	Insulation Height [z]	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Type	Number of Positions Loaded	Insulation Color	Fastening Type	Contact Material	Shrouding	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Finish	Wire Gauge	Features	Cable Termination	Wire Type	Contact Finish Thickness	Pitch [x]	Pitch [x]	Color	Insulation Height [z]
3M (TC) P50E-034P1-S1-EA	0.5 A	Through Hole	UL94 V-0	Plug	Solder	0.421 in	10.7 mm	0.05 in	1.27 mm	0.118 in	3 mm	34	Flash	Gold	Center Strip Contact	All	Black	Latch Holder	Copper Alloy	Shrouded - 4 Wall	Gold	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	2	10 çin	0.25 çm	Board to Board Cable
3M (TC) P50E-026S-EA		Free Hanging (In-Line)		Socket								26			Outer Shroud Contact			Latch Lock/Eject Hooks							2				Gold	28 AWG	Closed End	IDC	Ribbon Cable	Flash	0.05 in	1.27 mm	Black
3M (TC) P50E-100P1-SR1-TGF	0.5 A	Through Hole Right Angle	UL94 V-0	Plug	Solder	0.276 in		0.05 in	1.27 mm	0.118 in	3 mm	100		Gold	Center Strip Contact	All	Black	Latch Holder	Copper Alloy	Shrouded - 4 Wall	Tin Alloy	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	2	10 çin	0.25 çm	Board to Board Cable										7 mm
3M (TC) P50E-030P1-S1-EA	0.5 A	Through Hole	UL94 V-0	Plug	Solder	0.421 in	10.7 mm	0.05 in	1.27 mm	0.118 in	3 mm	30	Flash	Gold	Center Strip Contact	All	Black	Latch Holder	Copper Alloy	Shrouded - 4 Wall	Gold	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	2	10 çin	0.25 çm	Board to Board Cable
3M (TC) P50E-060P1-S1-EA	0.5 A	Through Hole	UL94 V-0	Plug	Solder	0.421 in	10.7 mm	0.05 in	1.27 mm	0.118 in	3 mm	60	Flash	Gold	Center Strip Contact	All	Black	Latch Holder	Copper Alloy	Shrouded - 4 Wall	Gold	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	2	10 çin	0.25 çm	Board to Board Cable
3M (TC) P50E-052P1-SR1-EA	0.5 A	Through Hole Right Angle	UL94 V-0	Plug	Solder	0.276 in		0.05 in	1.27 mm	0.118 in	3 mm	52	Flash	Gold	Center Strip Contact	All	Black	Latch Holder	Copper Alloy	Shrouded - 4 Wall	Gold	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	2	10 çin	0.25 çm	Board to Board Cable										7 mm
3M (TC) P50E-050S-EA		Free Hanging (In-Line)		Socket								50			Outer Shroud Contact			Latch Lock/Eject Hooks							2				Gold	28 AWG	Closed End	IDC	Ribbon Cable	Flash	0.05 in	1.27 mm	Black
3M (TC) P50E-068P1-S1-EA	0.5 A	Through Hole	UL94 V-0	Plug	Solder	0.421 in	10.7 mm	0.05 in	1.27 mm	0.118 in	3 mm	68	Flash	Gold	Center Strip Contact	All	Black	Latch Holder	Copper Alloy	Shrouded - 4 Wall	Gold	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	2	10 çin	0.25 çm	Board to Board Cable
3M (TC) P50E-068P1-SR1-EA	0.5 A	Through Hole Right Angle	UL94 V-0	Plug	Solder	0.276 in		0.05 in	1.27 mm	0.118 in	3 mm	68	Flash	Gold	Center Strip Contact	All	Black	Latch Holder	Copper Alloy	Shrouded - 4 Wall	Gold	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	2	10 çin	0.25 çm	Board to Board Cable										7 mm
3M (TC) P50E-060P1-SR1-EA	0.5 A	Through Hole Right Angle	UL94 V-0	Plug	Solder	0.276 in		0.05 in	1.27 mm	0.118 in	3 mm	60	Flash	Gold	Center Strip Contact	All	Black	Latch Holder	Copper Alloy	Shrouded - 4 Wall	Gold	85 °C	-55 °C	Glass Filled Nylon Polyamide (PA)	2	10 çin	0.25 çm	Board to Board Cable										7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 9.16
Newark	Each	100	$ 10.65
		250	$ 9.76
		500	$ 9.07
		1000	$ 8.52

Description

General part information

P50E Series

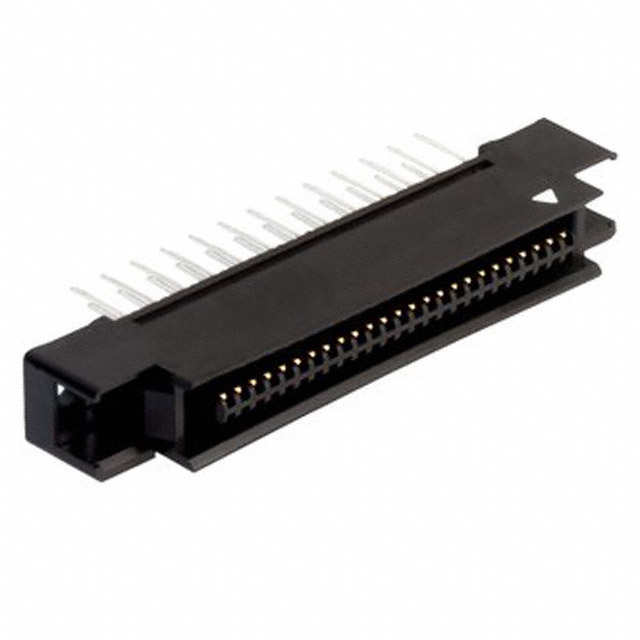

Connector Header Through Hole, Right Angle 52 position 0.050" (1.27mm)
