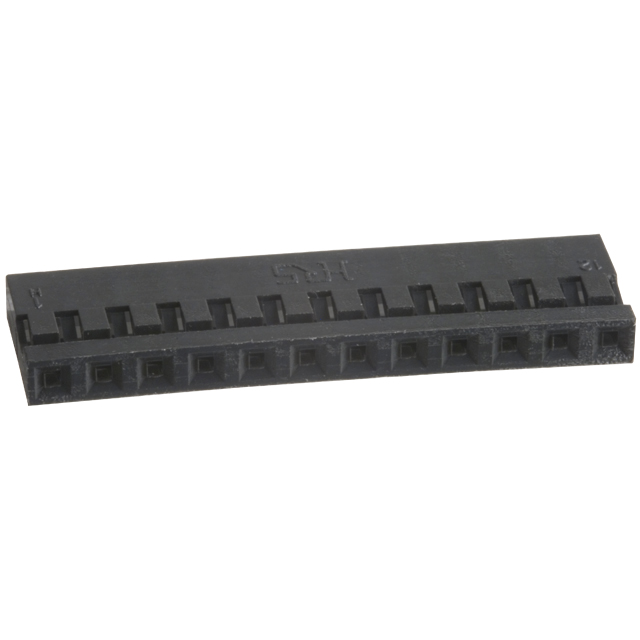

A4B-12S-2C

Active

Hirose Electric USA, Inc.

2.0MM PITCH SINGLE ROW MINIATURE CONNECTORS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

2.0MM PITCH SINGLE ROW MINIATURE CONNECTORS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	A4B-12S-2C

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

Part	Pitch [x]	Pitch [x]	Contact Type	Contact Termination	Number of Positions	Color	Insulation Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Rows	Note
Hirose Electric USA, Inc. A4B-12S-2C	0.079 in	2 mm	Female Socket	Crimp	12	Black	Polybutylene Terephthalate (PBT)	Receptacle	85 °C	-55 °C	Free Hanging (In-Line)	1	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
