5SRC-F
ActiveBivar Inc.

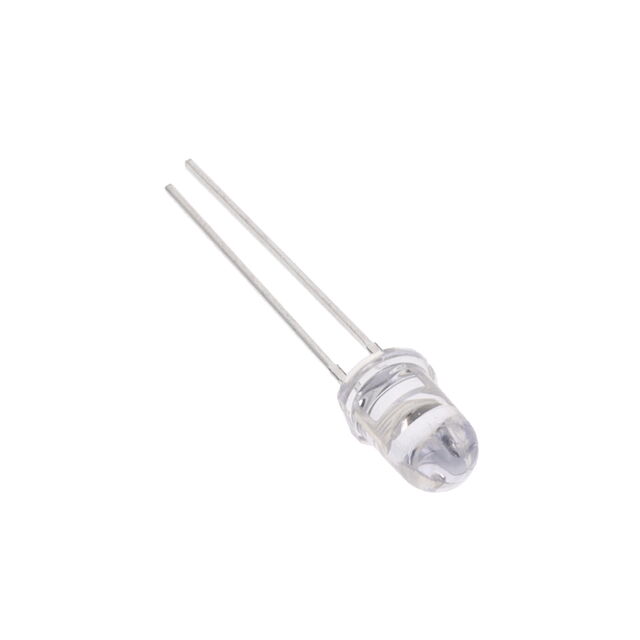

GENERAL PURPOSE VISIBLE DOME-STYLE LED,RED,WATER CLEAR,LED-2B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5SRC-F
ActiveBivar Inc.
GENERAL PURPOSE VISIBLE DOME-STYLE LED,RED,WATER CLEAR,LED-2B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5SRC-F |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 8.6 mm |
| Lens Color | Colorless |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 60 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 |
| Viewing Angle | 35 ° |
| Voltage - Forward (Vf) (Typ) | 1.7 V |
| Wavelength - Peak | 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
5SRC-F Series
Red LED Indication - Discrete 1.7V Radial
