WR-20S-VF-N1

Active

JAE Electronics

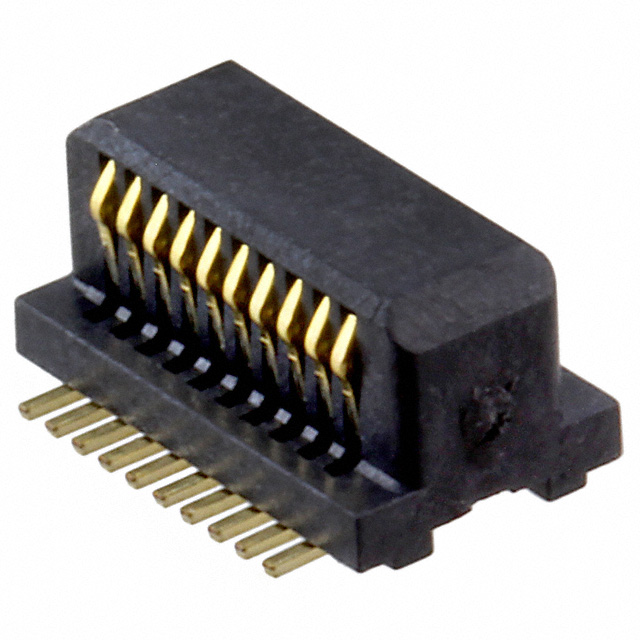

CONN RCPT 20POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WR-20S-VF-N1

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	4 mm, 6 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Number of Positions	Connector Type	Contact Finish	Height Above Board	Height Above Board	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type
JAE Electronics WR-20S-VF-N1-R1500	4 Áin	0.1 Ám	4 mm 5 mm 6 mm	20	Center Strip Contacts Receptacle	Gold	3.25 mm	0.128 in	2	0.5 mm	0.02 in	Surface Mount
JAE Electronics WR-20S-VF-N1	4 Áin	0.1 Ám	4 mm 5 mm 6 mm	20	Center Strip Contacts Receptacle	Gold	3.25 mm	0.128 in	2	0.5 mm	0.02 in	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	187	$ 3.76

General part information

20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
