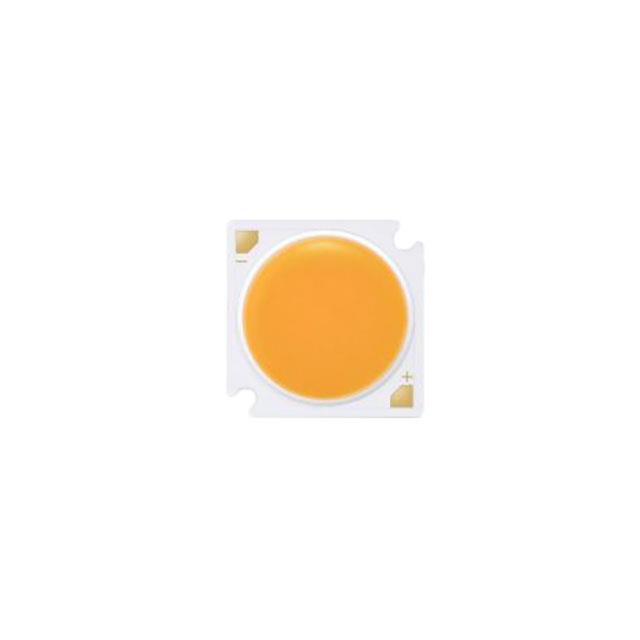

SPHWHAHDNM271ZT3DC

Active

Samsung Semiconductor, Inc.

LED COB D GEN3 NEUT WHT SQ 4000K

Deep-Dive with AI

Search across all available documentation for this part.

SPHWHAHDNM271ZT3DC

Active

Samsung Semiconductor, Inc.

LED COB D GEN3 NEUT WHT SQ 4000K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPHWHAHDNM271ZT3DC

CCT (K)	4000 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	3.24 A
Current - Test	1.62 A
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	22 mm
Lumens/Watt @ Current - Test	144 lm/W
Luminous Flux @ Current/Temperature	11743 lm
Size / Dimension [x]	28 mm
Size / Dimension [y]	28 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °

SPHWHAHDNM271 Series

Part	Voltage - Forward (Vf) (Typ)	Lens Type	CCT (K)	Light Emitting Surface (LES) [diameter]	Current - Max [Max]	CRI (Color Rendering Index)	Type	Height [z]	Configuration	Viewing Angle	Luminous Flux @ Current/Temperature	Color	Current - Test	Temperature - Test	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]
Samsung Semiconductor, Inc. SPHWHAHDNM271ZU3D2	52 V	Flat	3500 K	22 mm	4.14 A	90	Chip On Board (COB)	1.5 mm	Square	115 °	11004 lm	Warm White	1.62 A	85 °C	131 lm/W	28 mm	28 mm
Samsung Semiconductor, Inc. SPHWHAHDNM271ZW3D3	50 V	Flat	2700 K	22 mm	4.14 A	90	Chip On Board (COB)	1.5 mm	Square	115 °		Warm White	1.62 A	85 °C	131 lm/W	28 mm	28 mm
Samsung Semiconductor, Inc. SPHWHAHDNM271ZV3DB	51.1 V	Flat	3000 K	22 mm	3.24 A	90	Chip On Board (COB)	1.5 mm	Square	115 °	12468 lm	Warm White	1.62 A	85 °C	151 lm/W	28 mm	28 mm
Samsung Semiconductor, Inc. SPHWHAHDNM271ZT3DB	51.1 V	Flat	4000 K	22 mm	3.24 A	90	Chip On Board (COB)	1.5 mm	Square	115 °	13123 lm	Neutral White	1.62 A	85 °C	159 lm/W	28 mm	28 mm
Samsung Semiconductor, Inc. SPHWHAHDNM271ZR3DB	51.1 V	Flat		22 mm	3.24 A	90	Chip On Board (COB)	1.5 mm	Square	115 °	13196 lm	Cool White	1.62 A	85 °C	159 lm/W	28 mm	28 mm
Samsung Semiconductor, Inc. SPHWHAHDNM271ZT2D3	50 V	Flat	4000 K	22 mm	4.14 A	90	Chip On Board (COB)	1.5 mm	Square	115 °	11766 lm	Neutral White	1.62 A	85 °C	145 lm/W	28 mm	28 mm
Samsung Semiconductor, Inc. SPHWHAHDNM271ZV2D2	52 V	Flat	3000 K	22 mm	4.14 A	90	Chip On Board (COB)	1.5 mm	Square	115 °	10731 lm	Warm White	1.62 A	85 °C	127 lm/W	28 mm	28 mm
Samsung Semiconductor, Inc. SPHWHAHDNM271ZW2D3	50 V	Flat	2700 K	22 mm	4.14 A	90	Chip On Board (COB)	1.5 mm	Square	115 °		Warm White	1.62 A	85 °C	131 lm/W	28 mm	28 mm
Samsung Semiconductor, Inc. SPHWHAHDNM271ZT3DC		Flat	4000 K	22 mm	3.24 A	90	Chip On Board (COB)	1.5 mm	Square	115 °	11743 lm	Neutral White	1.62 A	85 °C	144 lm/W	28 mm	28 mm
Samsung Semiconductor, Inc. SPHWHAHDNM271ZW3D2	52 V	Flat	2700 K	22 mm	4.14 A	90	Chip On Board (COB)	1.5 mm	Square	115 °	10157 lm	Warm White	1.62 A	85 °C	121 lm/W	28 mm	28 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.02
		10	$ 7.60

Description

General part information

SPHWHAHDNM271 Series

LED Lighting COBs Engines Modules Chip On Board (COB) COB D Gen3 Plus White, Neutral Square

Documents

Technical documentation and resources

No documents available
