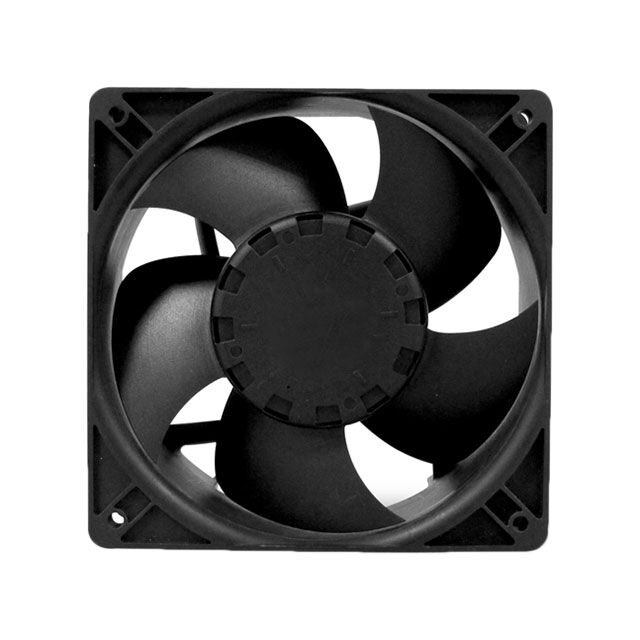

CF4113LBL-000U-A99
ObsoleteSunon Fans
FAN AXIAL 120X38MM 100-240V
Deep-Dive with AI
Search across all available documentation for this part.
CF4113LBL-000U-A99
ObsoleteSunon Fans
FAN AXIAL 120X38MM 100-240V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CF4113LBL-000U-A99 |
|---|---|
| Air Flow | 1.8 m³/min |
| Air Flow | 64.3 CFM |
| Approval Agency | TUV, cUR, UL, CE |
| Bearing Type | Ball |
| Current Rating (Amps) [Max] | 0.037 A |
| Current Rating (Amps) [Min] | 0.022 A |
| Fan Type | Tubeaxial |
| Features | Dual Voltage, Electronic Commutation (EC), Auto Restart |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 31.4 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 1.8 W |
| RPM | 2000 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 42.3 Pa |
| Static Pressure | 0.17 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated [Max] | 230 VAC |
| Voltage - Rated [Min] | 110 VAC |
| Voltage Range [Max] | 265 VAC |
| Voltage Range [Min] | 90 VAC |
| Weight | 269.89 g |
| Weight | 0.595 lb |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CF4113LBL Series
Fan Tubeaxial 110/230VAC Square - 120mm L x 120mm H Ball 64.3 CFM (1.80m³/min) 2 Wire Leads
