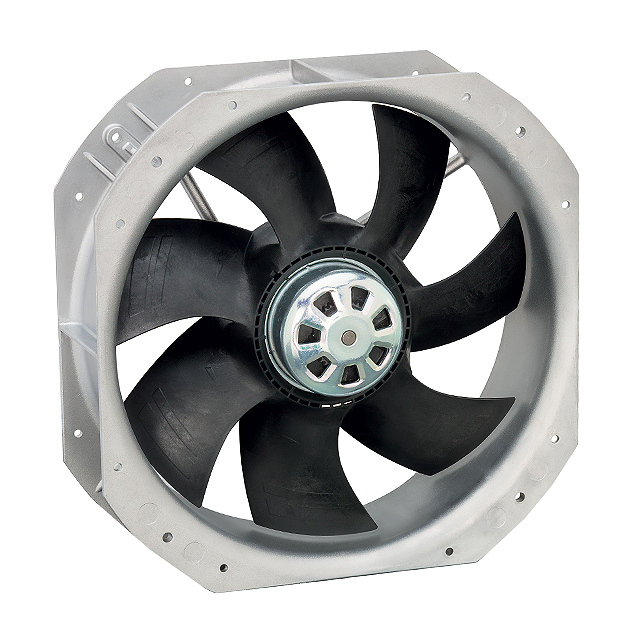

W3G250-HH07-03

Active

ebm-papst Inc.

FAN AXIAL 230V 280X80MM 1000CFM

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 230V 280X80MM 1000CFM

Technical Specifications

Parameters and characteristics for this part

Specification	W3G250-HH07-03

Air Flow	28 mł/min
Air Flow	1000 CFM
Approval Agency	CE, CCC, CSA
Bearing Type	Ball
Current Rating (Amps)	0.72 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Ingress Protection	IP54 - Dust Protected, Water Resistant
Material - Blade	Polypropylene (PP)
Material - Frame	Aluminum
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	83 W
RPM	2330 RPM
Size / Dimension [x]	280 mm
Size / Dimension [y]	280 mm
Termination	Terminal Block
Voltage - Rated	230 VAC
Weight	2.1 kg
Weight	4.6 lbs
Width [y]	80 mm

Part	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Ingress Protection	Voltage - Rated	Material - Blade	Approval Agency	Weight	Weight	Air Flow	Air Flow	Static Pressure	Static Pressure	Fan Type	Features	Termination	Bearing Type	RPM	Power (Watts)	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension	Air Flow
ebm-papst Inc. W3G250-HH53-03	900 mA	130 VAC	100 VAC	Aluminum	IP54 - Dust Protected Water Resistant	115 VAC	Polypropylene (PP)	UL	2.1 kg	4.6 lbs	23.69 m³/min	846 CFM	0.32 in H2O	79.7 Pa	Tubeaxial	PWM Control Speed Sensor (Tach)	Terminal Block	Ball	2040 RPM	56 W	80 mm	50 °C	-25 °C	-25 °C	50 °C	280 mm	280 mm
ebm-papst Inc. W3G250-CC54-01	1.25 A	277 VAC	200 VAC	Steel	IP44	230 VAC	Steel	CCC CE CSA UL							Tubeaxial	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	3 Wire Leads with Ferrules 4 Wire Leads with Ferrules	Ball		170 W		60 °C	-25 °C					320 mm	Round
ebm-papst Inc. W3G250-HH07-03	0.72 A			Aluminum	IP54 - Dust Protected Water Resistant	230 VAC	Polypropylene (PP)	CCC CE CSA	2.1 kg	4.6 lbs	1000 CFM				Tubeaxial	PWM Control Speed Sensor (Tach)	Terminal Block	Ball	2330 RPM	83 W	80 mm	60 °C	-25 °C			280 mm	280 mm			28 mł/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Square - 280mm L x 280mm H Ball 1000.0 CFM (28.00mł/min) Terminal Block
