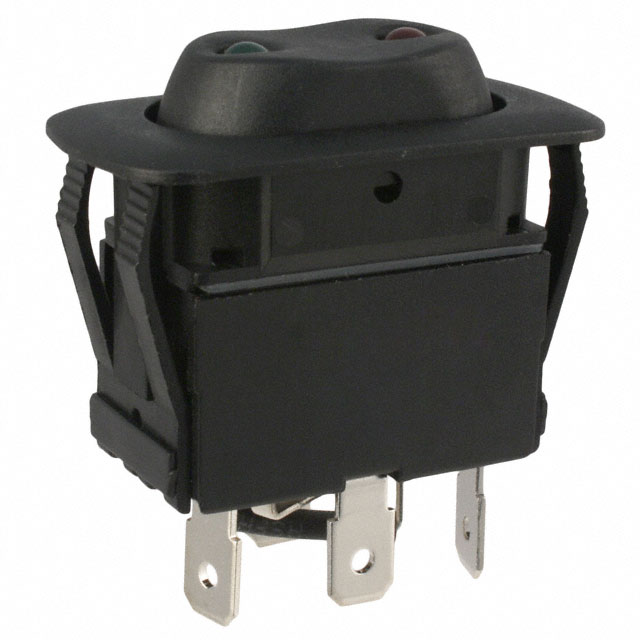

GRB263D2BBGR2D1

Active

CW Industries

SWITCH ROCKER SPDT 21A 14V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER SPDT 21A 14V

Technical Specifications

Parameters and characteristics for this part

Specification	GRB263D2BBGR2D1

Actuator Marking	No Marking
Actuator Type	Oval - Illuminated
Approval Agency	ENEC, cULus
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	21 A
Illumination Type, Color	Green/Red, LED
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.6 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	14 V

Part	Approval Agency	Termination Style	Actuator Type	Color - Actuator/Cap	Switch Function	Circuit	Mechanical Life	Illumination Type, Color	Voltage Rating - DC	Actuator Marking	Current Rating (Amps)	Ingress Protection	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Operating Temperature [Max]	Operating Temperature [Min]
CW Industries GRB263D2BBGR2D1	cULus ENEC	Quick Connect - 0.250" (6.3mm)	Oval - Illuminated	Black	On-Off-On	SPDT	100000 Cycles	Green/Red LED	14 V	No Marking	21 A	IP56 - Dust Protected Water Resistant	Panel Mount Snap-In	21.2 mm	36.6 mm	85 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 5.45

General part information

Rocker Switch SPDT 21A (DC) Panel Mount, Snap-In
