G125-FV22605L0R
ActiveHarwin Inc.

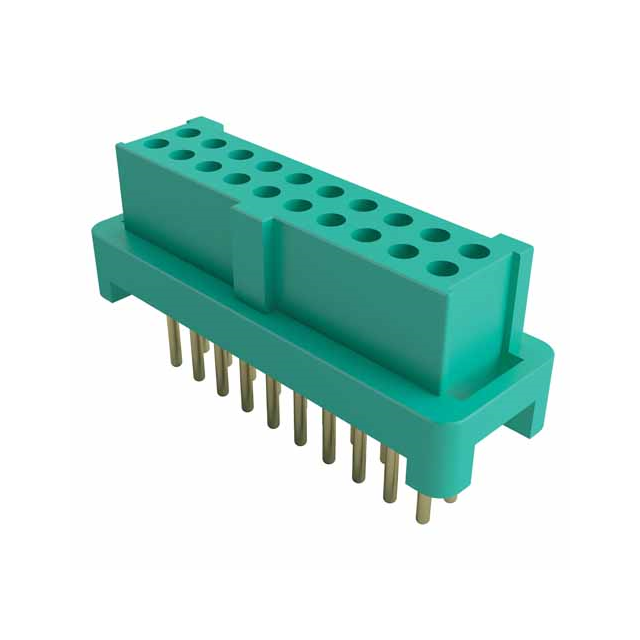

13+13 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. FOR LATCHES (T+R) ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
G125-FV22605L0R
ActiveHarwin Inc.
13+13 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. FOR LATCHES (T+R) ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-FV22605L0R |
|---|---|
| Applications | Automotive, General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Length - Post | 0.177 in |
| Contact Length - Post | 4.5 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 2 A |
| Fastening Type | Latch Holder |
| Features | Pick and Place, Polarizing Key |
| Insulation Color | Green |
| Insulation Height | 0.207 in |
| Insulation Height | 5.25 mm |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Row Spacing - Mating | 1.25 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G125-FV2 Series
26 Position Receptacle Connector 0.049" (1.25mm) Through Hole Gold
