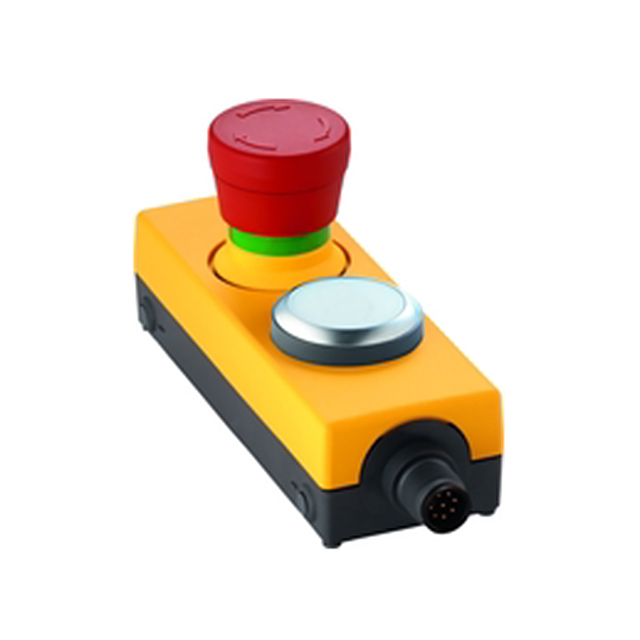

1.22.114.392/0200
ActiveRAFI USA
SWITCH E-STOP TWIST RESET 100MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.22.114.392/0200
ActiveRAFI USA
SWITCH E-STOP TWIST RESET 100MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.22.114.392/0200 |
|---|---|
| Circuit | DPST-NC, SPST-NO |
| Current Rating (Amps) | 100 mA |
| Features | With Pushbutton Switch, Status Indicator, Control Box Enclosure |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Reset Operation | Twist |
| Switch Function | On-Off, Off-On |
| Termination Style | Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 244.46 | |
| 5 | $ 213.37 | |||
| 10 | $ 201.19 | |||
| 25 | $ 186.12 | |||
| 50 | $ 175.44 | |||
Description
General part information
1.22.114 Series
SWITCH E-STOP TWIST RESET 100MA
