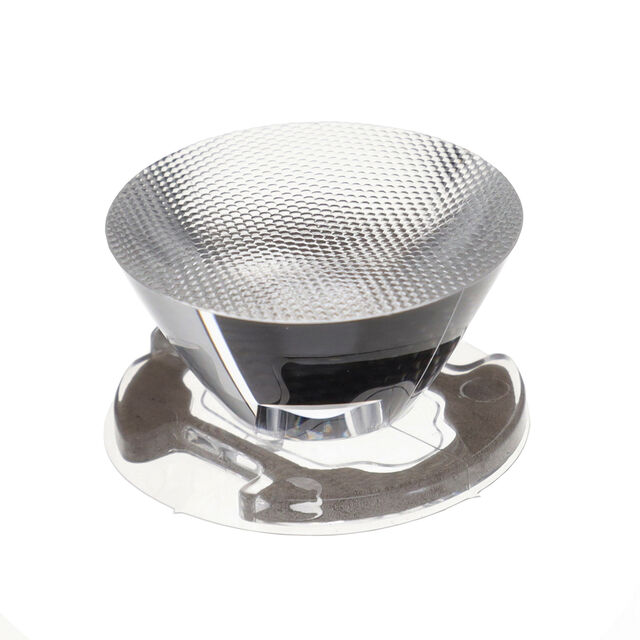

CA11391_EMILY-M2

Active

LEDiL

TRAY /ASSEMBLY/ROUND/1 POS/26MM (D)/15,15MM(H) ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LEDiL

TRAY /ASSEMBLY/ROUND/1 POS/26MM (D)/15,15MM(H) ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	CA11391_EMILY-M2

Color	Clear
For Use With/Related Manufacturer	Osram, Seoul, Sharp, Lumileds, Cree, Nichia
Lens Size [diameter]	26 mm
Lens Transparency	Diffused
Material	Acrylic
Mounting Type	Adhesive Tape
Number of LEDs	1
Optical Pattern	Medium
Type	Lens with Integrated Mount
Viewing Angle [Max]	30 °
Viewing Angle [Min]	28 °

Part	Lens Size [diameter]	Viewing Angle [Max]	Viewing Angle [Min]	Mounting Type	Type	Lens Transparency	Number of LEDs	Material	Color	For Use With/Related Manufacturer	Optical Pattern
LEDiL CA11391_EMILY-M2	26 mm	30 °	28 °	Adhesive Tape	Lens with Integrated Mount	Diffused	1	Acrylic	Clear	Cree Lumileds Nichia Osram Seoul Sharp	Medium

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens with Integrated Mount Clear 28° ~ 30° Medium Adhesive Tape
