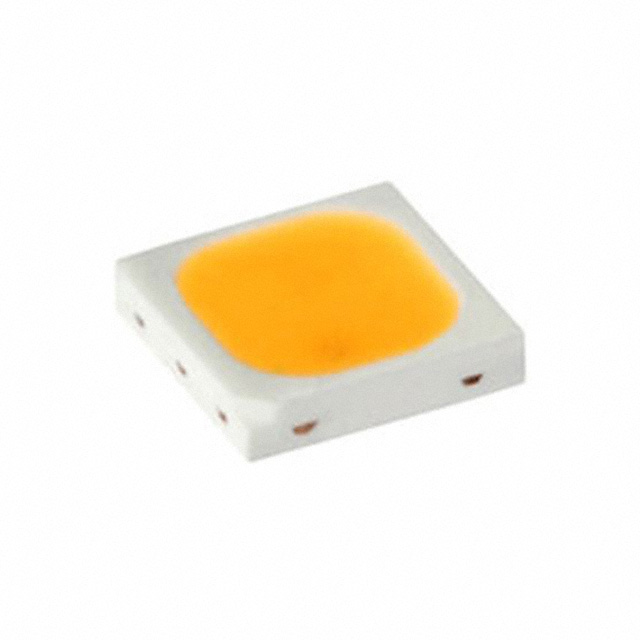

STW8C2SA-J19K24-GA
ActiveSeoul Semiconductor
LED ACRICH WARM WHT 2900K 3030
Deep-Dive with AI
Search across all available documentation for this part.
STW8C2SA-J19K24-GA
ActiveSeoul Semiconductor
LED ACRICH WARM WHT 2900K 3030
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STW8C2SA-J19K24-GA |
|---|---|
| CCT (K) | 2900 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 200 mA |
| Current - Test | 100 mA |
| Flux @ 25°C, Current - Test | 73 lm |
| Flux @ 25°C, Current - Test [Max] | 85 lm |
| Flux @ 25°C, Current - Test [Min] | 61 lm |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Lumens/Watt @ Current - Test | 116 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | 3030 |
| Thermal Resistance of Package [diameter] | 10 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.65 | |
| Digi-Reel® | 1 | $ 0.65 | ||
| Tape & Reel (TR) | 18000 | $ 0.18 | ||
| 31500 | $ 0.17 | |||
Description
General part information
STW8C2 Series
LED Lighting Acrich White, Warm 2900K (2600K ~ 3200K) 6.3V 100mA 120° 1212 (3030 Metric)
