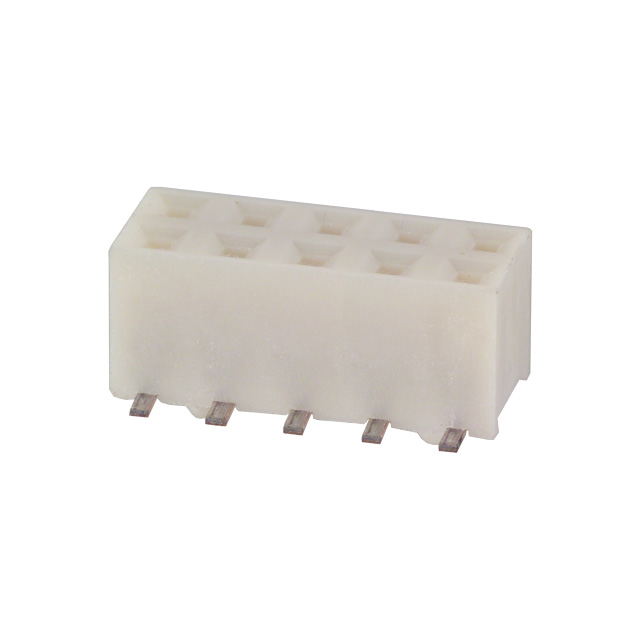

A3A-10DA-2SV(71)

Active

Hirose Electric USA, Inc.

CONN SOCKET STRIP RCP 10 POS 2MM SOLDER ST TOP ENTRY SMD TUBE

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN SOCKET STRIP RCP 10 POS 2MM SOLDER ST TOP ENTRY SMD TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	A3A-10DA-2SV(71)

Applications	Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Brown
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polyphenylene Sulfide (PPS)
Mated Stacking Heights	6 mm, 5.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Contact Finish - Post	Fastening Type	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Rows	Number of Positions	Insulation Color	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Applications	Style	Termination	Number of Positions Loaded	Contact Shape	Material Flammability Rating	Mated Stacking Heights
Hirose Electric USA, Inc. A3A-10DA-2SV	85 °C	-55 °C	Polyphenylene Sulfide (PPS)	0.165 in	4.2 mm	Gold	Tin	Push-Pull	Board Guide	1 çm	39.4 çin	Female Socket	0.203 Ám	8 Áin	Phosphor Bronze	2	10	Brown	Receptacle	0.079 in	2 mm	0.079 in	2 mm	Surface Mount	General Purpose Telecommunications	Board to Board Cable	Solder	All	Square	UL94 V-0	5.1 mm 6 mm
Hirose Electric USA, Inc. A3A-10DA-2SV(71)	85 °C	-55 °C	Polyphenylene Sulfide (PPS)	0.165 in	4.2 mm	Gold	Tin	Push-Pull	Board Guide	1 çm	39.4 çin	Female Socket	0.203 Ám	8 Áin	Phosphor Bronze	2	10	Brown	Receptacle	0.079 in	2 mm	0.079 in	2 mm	Surface Mount	General Purpose Telecommunications	Board to Board Cable	Solder	All	Square	UL94 V-0	5.1 mm 6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
