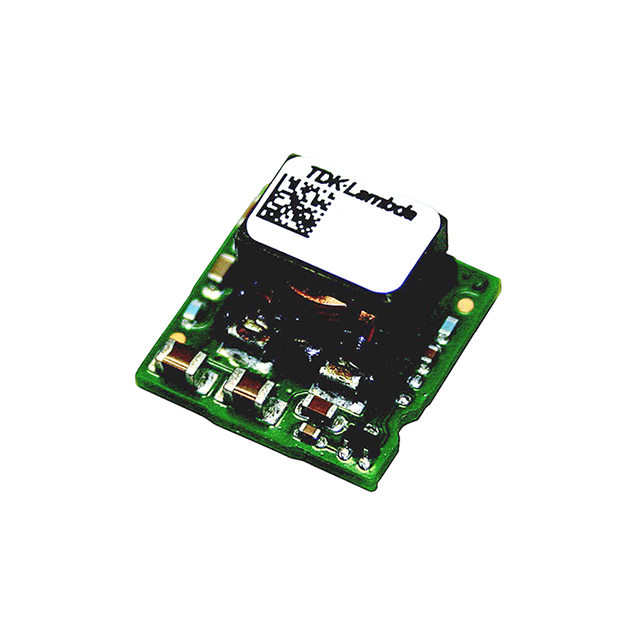

ICH12012A007V-006-R
ActiveNON ISOLATED POL DC/DC CONVERTER, ITE, DOSA, 85 W, 700 MV, 8.5 V, 12 A
Deep-Dive with AI
Search across all available documentation for this part.
ICH12012A007V-006-R
ActiveNON ISOLATED POL DC/DC CONVERTER, ITE, DOSA, 85 W, 700 MV, 8.5 V, 12 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICH12012A007V-006-R |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 12 A |
| Efficiency | 97 % |
| Features | OCP, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-SMD Module |
| Power (Watts) | 85 W |
| Size / Dimension [x] | 12.2 mm |
| Size / Dimension [x] | 0.48 in |
| Size / Dimension [y] | 0.48 in |
| Size / Dimension [y] | 12.2 mm |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Supplier Device Package | 14-SMD Module |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 8.5 V |
| Voltage - Output 1 [Min] | 0.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ICH12012 Series
ICH12012A007V-006-R is an iCH series non-isolated SMT point-of-load converter provides localized voltage conversion from either a 5V or 12V bus. With its wide input and wide output voltage adjustment range, this compact-size and surface-mountable DC-DC module can deliver up to 85W making it a versatile solution for various board mount power requirements. It includes overcurrent protection. Application includes industrial, test, COMM, broadcast. Certified by IEC/UL/CSA/EN 62368-1, 60950-1.
