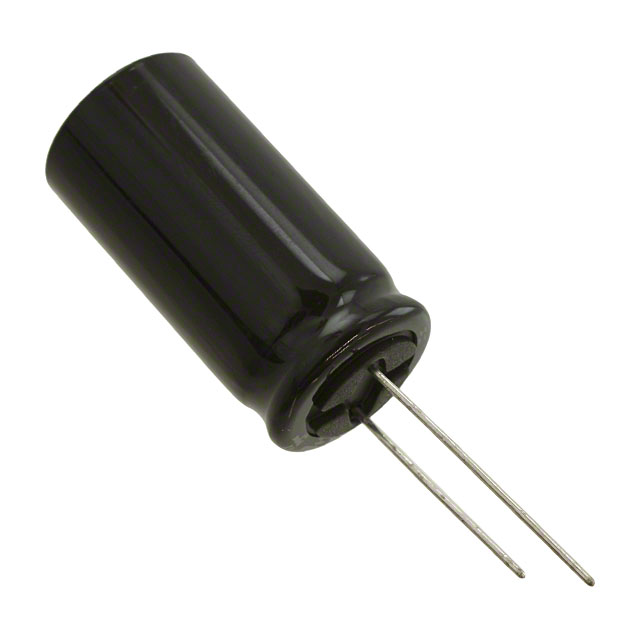

UVY2C331MHD

Active

NICHICON

CAP ALUM 330UF 20% 160V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miniature Type Taping Spec

UVY2C331MHD

Active

NICHICON

CAP ALUM 330UF 20% 160V RADIAL

Deep-Dive with AI

DocumentsDatasheet Miniature Type Taping Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UVY2C331MHD

Applications	General Purpose
Capacitance	330 µF
Height - Seated (Max) [Max] [z]	37.5 mm
Height - Seated (Max) [Max] [z]	1.476 in
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	655.5 mA
Ripple Current @ Low Frequency	570 mA
Size / Dimension [diameter]	0.709 "
Size / Dimension [diameter]	18 mm
Tolerance	20 %
Voltage - Rated	160 V

UVY2C Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Capacitance	Applications	Voltage - Rated	Tolerance	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
NICHICON UVY2C101MHD1TO	1.063 in	27 mm	Through Hole	0.492 in	12.5 mm	2000 Hrs	356.5 mA	310 mA	5 mm	0.197 in	100 µF	General Purpose	160 V	20 %	Polar	-40 °C	105 ░C	Radial Can
NICHICON UVY2C680MHD	0.866 in	22 mm	Through Hole	0.492 in	12.5 mm	2000 Hrs	287.5 mA	250 mA	5 mm	0.197 in	68 µF	General Purpose	160 V	20 %	Polar	-40 °C	105 ░C	Radial Can
NICHICON UVY2C100MPD1TD	0.512 "	13 mm	Through Hole	0.315 "	8 mm	1000 Hrs	47.15 mA	41 mA	3.5 mm	0.138 in	10 µF	General Purpose	160 V	20 %	Polar	-40 °C	105 ░C	Radial Can
NICHICON UVY2C680MHD1TO	0.866 in	22 mm	Through Hole	0.492 in	12.5 mm	2000 Hrs	287.5 mA	250 mA	5 mm	0.197 in	68 µF	General Purpose	160 V	20 %	Polar	-40 °C	105 ░C	Radial Can
NICHICON UVY2C331MHD	1.476 in	37.5 mm	Through Hole	0.709 "	18 mm	2000 Hrs	655.5 mA	570 mA	7.5 mm	0.295 in	330 µF	General Purpose	160 V	20 %	Polar	-40 °C	105 ░C	Radial Can
NICHICON UVY2C470MPD1TD	0.866 in	22 mm	Through Hole	0.394 in	10 mm	2000 Hrs	172.5 mA	150 mA	5 mm	0.197 in	47 µF	General Purpose	160 V	20 %	Polar	-40 °C	105 ░C	Radial Can
NICHICON UVY2C330MPD1TD			Through Hole	0.394 in	10 mm	2000 Hrs	143.75 mA	125 mA	5 mm	0.197 in	33 ÁF	General Purpose	160 V	20 %	Polar	-40 °C	105 ░C	Radial Can	0.689 in	17.5 mm
NICHICON UVY2C220MPD			Through Hole	0.394 in	10 mm	2000 Hrs	105.8 mA	92 mA	5 mm	0.197 in	22 µF	General Purpose	160 V	20 %	Polar	-40 °C	105 ░C	Radial Can	0.551 "		14 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 1.40
Newark	Each	100	$ 1.65
		500	$ 1.49
		1000	$ 1.29
		2500	$ 1.16

Description

General part information

UVY2C Series

330 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Miniature Type Taping Spec

Datasheet
