Q8F5BXXHR12E
ActiveAPEM

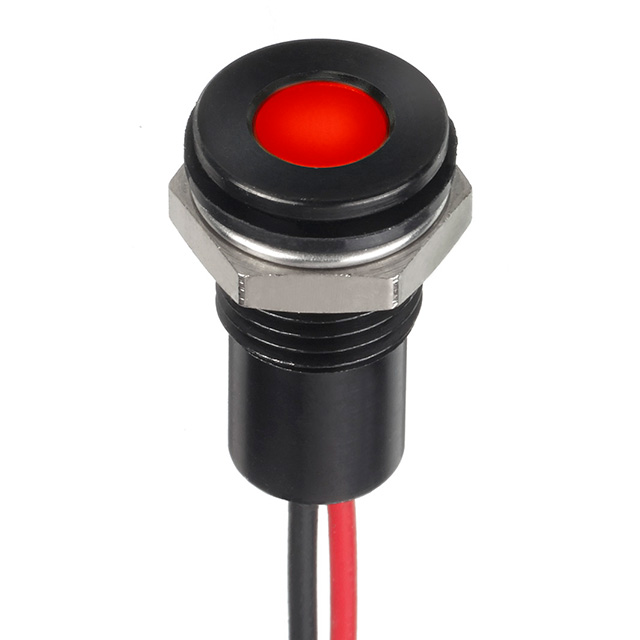

INDICATOR 8MM PM FLUSH RED POTTE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q8F5BXXHR12E
ActiveAPEM
INDICATOR 8MM PM FLUSH RED POTTE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q8F5BXXHR12E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size [diameter] | 5 mm Dia |
| Lens Transparency | Diffused |
| Millicandela Rating | 980 mcd |
| Panel Cutout Dimensions | 8 mm |
| Panel Cutout Dimensions | 0.315 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.17 | |
| 10 | $ 21.29 | |||
| 100 | $ 18.26 | |||
| 500 | $ 17.50 | |||
Description
General part information
Q8F5BXXHR Series
LED Panel Indicator Red Diffused 100° 12V 20mA Wire Leads - 7.87" (200.00mm)
