306-026-500-103
ActiveEDAC Inc.

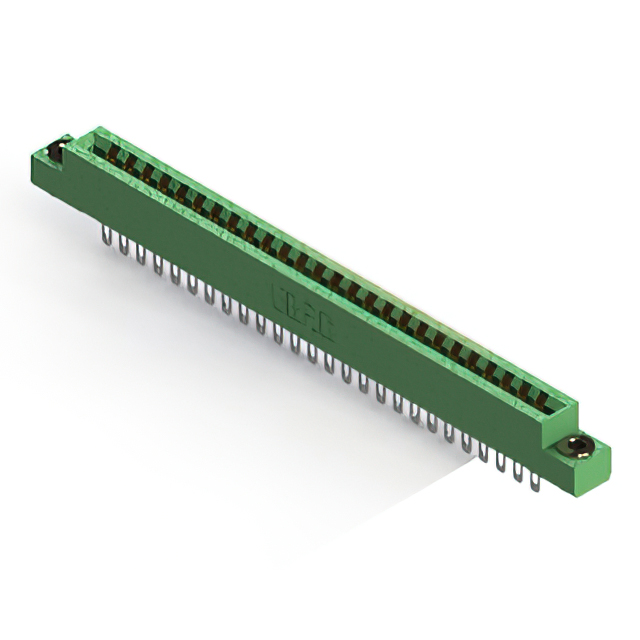

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
306-026-500-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-026-500-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
306-026 Series
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Material - Insulation | Number of Rows | Number of Positions/Bay/Row [custom] | Number of Positions | Contact Type | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Flange Feature | Termination | Pitch [x] | Pitch [x] | Card Type | Mounting Type | Read Out | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Polyester Thermoplastic | 2 | 26 | 52 | Cantilever | 1 | -40 °C | 105 ░C | Green | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Solder | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Panel Mount Through Hole | Dual | Female | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Polyester Thermoplastic | 2 | 26 | 52 | Cantilever | 1 | -40 °C | 105 ░C | Green | Copper Alloy | Flush Mount Side Opening Unthreaded | Solder Eyelet(s) | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Dual | Female | 3.25 mm | 0.128 " | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyester Thermoplastic | 2 | 26 | 52 | Cantilever | 1 | -40 °C | 105 ░C | Green | Copper Alloy | Flush Mount Top Opening Unthreaded | Solder | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Panel Mount Through Hole | Dual | Female | 3.96 mm | 0.156 in | 10 Áin | 0.25 Ám | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Polyester Thermoplastic | 2 | 26 | 52 | Cantilever | 1 | -40 °C | 105 ░C | Green | Copper Alloy | Floating Bobbin Flush Mount | Solder | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Panel Mount Through Hole | Dual | Female | 2.95 mm | 0.116 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyester Thermoplastic | 2 | 26 | 52 | Cantilever | 1 | -40 °C | 105 ░C | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Panel Mount Through Hole | Dual | Female | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Polyester Thermoplastic | 2 | 26 | 52 | Cantilever | 1 | -40 °C | 105 ░C | Green | Copper Alloy | Solder Eyelet(s) | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Free Hanging (In-Line) | Dual | Female | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyester Thermoplastic | 2 | 26 | 52 | Cantilever | 1 | -40 °C | 105 ░C | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Panel Mount Through Hole | Dual | Female | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyester Thermoplastic | 2 | 26 | 52 | Cantilever | 1 | -40 °C | 105 ░C | Green | Copper Alloy | Flush Mount Top Opening Unthreaded | Solder Eyelet(s) | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Dual | Female | 3.96 mm | 0.156 in | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Polyester Thermoplastic | 2 | 26 | 52 | Cantilever | 1 | -40 °C | 105 ░C | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Dual | Female | Card Guides | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyester Thermoplastic | 2 | 26 | 52 | Cantilever | 1 | -40 °C | 105 ░C | Green | Copper Alloy | Floating Bobbin Flush Mount | Solder Eyelet(s) | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Dual | Female | 2.95 mm | 0.116 in | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
306-026 Series
52 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
