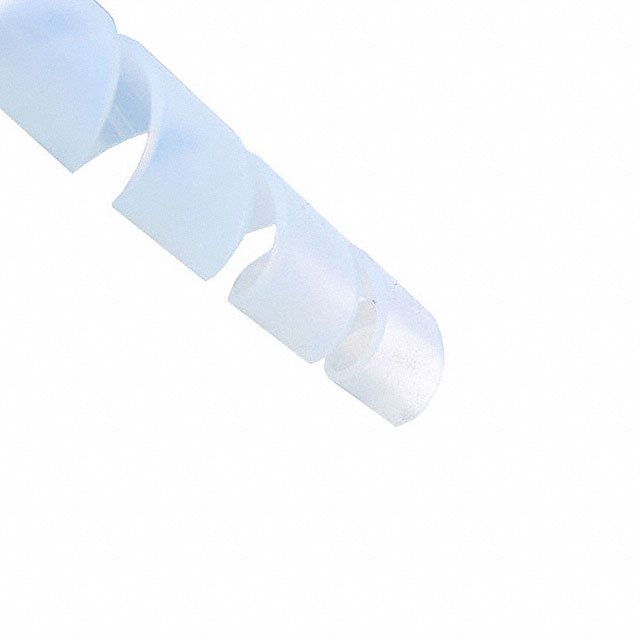

SW6 CL008

Active

ALPHA WIRE

SPIRAL WRAP 0.84" X 25' CLEAR

Search across all available documentation for this part.

Active

ALPHA WIRE

SPIRAL WRAP 0.84" X 25' CLEAR

Technical Specifications

Parameters and characteristics for this part

Specification	SW6 CL008

Abrasion Protection	Abrasion Resistant
Color	Clear
Diameter - Inside, Non-Expanded [diameter]	21.34 mm
Diameter - Inside, Non-Expanded [diameter]	0.84 in
Diameter - Outside, Non-Expanded [diameter]	25.4 mm
Diameter - Outside, Non-Expanded [diameter]	1 "
Features	Solvent Resistant
Length [x]	25 ft
Length [x]	7.62 m
Material	Polyethylene (PE), Halogen Free
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	2.03 mm
Wall Thickness	0.08 in

Part	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Material	Abrasion Protection	Type Attributes	Length [x]	Length [x]	Wall Thickness	Wall Thickness	Features	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Color	Type	Operating Temperature [Min]	Operating Temperature [Max]
ALPHA WIRE SW6 CL008	25.4 mm	1 "	Polyethylene (PE) Halogen Free	Abrasion Resistant	Harness	25 ft	7.62 m	2.03 mm	0.08 in	Solvent Resistant	21.34 mm	0.84 in	Clear	Spiral Wrap	-60 °C	88 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Spiral Wrap 1.000" (25.40mm) X 25.00' (7.62m) Clear
