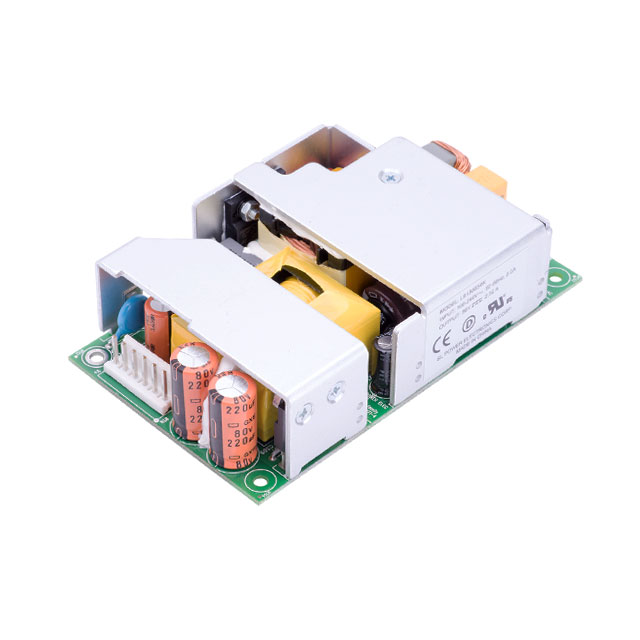

LB130S56K
ActiveSL POWER / Advanced Energy
AC/DC POWER SUPPLY SINGLE-OUT 56V 2.32A 130W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LB130S56K
ActiveSL POWER / Advanced Energy
AC/DC POWER SUPPLY SINGLE-OUT 56V 2.32A 130W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LB130S56K |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 2.32 A |
| Efficiency | 90 % |
| Features | PFC, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 130 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 1.22 in |
| Size / Dimension [z] | 31.1 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 56 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LB130S56 Series
Open Frame AC DC Converters 1 Output 56V 90 ~ 264 VAC Input
