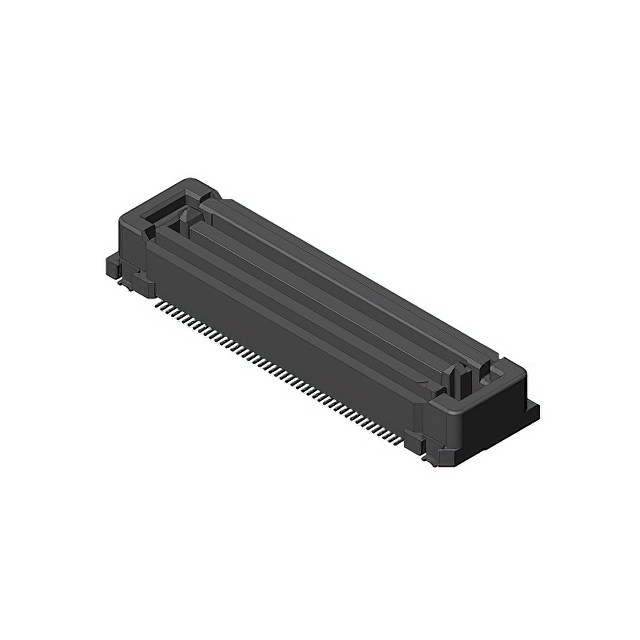

AX01F090VAABR500

Active

JAE Electronics

CONN FLOATING SIDE STR 90 POS

Search across all available documentation for this part.

Active

JAE Electronics

CONN FLOATING SIDE STR 90 POS

Technical Specifications

Parameters and characteristics for this part

Specification	AX01F090VAABR500

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board [z]	0.248 "
Height Above Board [z]	6.3 mm
Mated Stacking Heights	8 mm, 18 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	90
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Contact Finish	Connector Type	Number of Positions	Number of Rows	Mounting Type	Features	Mated Stacking Heights [Min]	Mated Stacking Heights [Max]	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights
JAE Electronics AX01F090VACBR150	Gold	Center Strip Contacts Receptacle	90	2	Surface Mount	Board Guide Solder Retention	8 mm	30 mm	18.3 mm	0.72 "	4 Áin	0.1 Ám	0.64 mm	0.025 in
JAE Electronics AX01F090VABBR300	Gold	Center Strip Contacts Receptacle	90	2	Surface Mount	Board Guide Solder Retention					4 Áin	0.1 Ám	0.64 mm	0.025 in
JAE Electronics AX01F090VAABR500	Gold	Center Strip Contacts Receptacle	90	2	Surface Mount	Board Guide Solder Retention					4 Áin	0.1 Ám	0.64 mm	0.025 in	0.248 "	6.3 mm	8 mm 10 mm 18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 5.34

General part information

90 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
