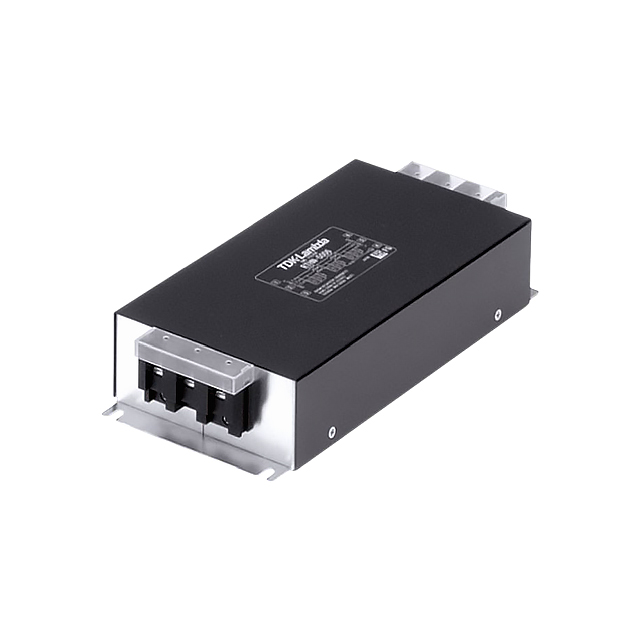

RTMN-5006

Active

TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 6 A, THREE PHASE, 2 STAGE, CHASSIS MOUNT

Search across all available documentation for this part.

Active

TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 6 A, THREE PHASE, 2 STAGE, CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Filter Type	Applications	Current	Configuration	Approval Agency	Voltage - Rated DC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated AC
TDK-LAMBDA RTMN-5040	Terminal Block	Three Phase (Delta)	General Purpose	40 A	Two Stage	EN UL	500 V	Chassis Mount	-25 °C	85 °C	500 V
TDK-LAMBDA RTMN-5050	Terminal Block	Three Phase (Delta)	General Purpose	50 A	Two Stage	EN UL	500 V	Chassis Mount	-25 °C	85 °C	500 V
TDK-LAMBDA RTMN-5006	Terminal Block	Three Phase (Delta)	General Purpose	6 A	Two Stage	EN UL	500 V	Chassis Mount	-25 °C	85 °C	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 6 A 500V 500V Two Stage Terminal Block
