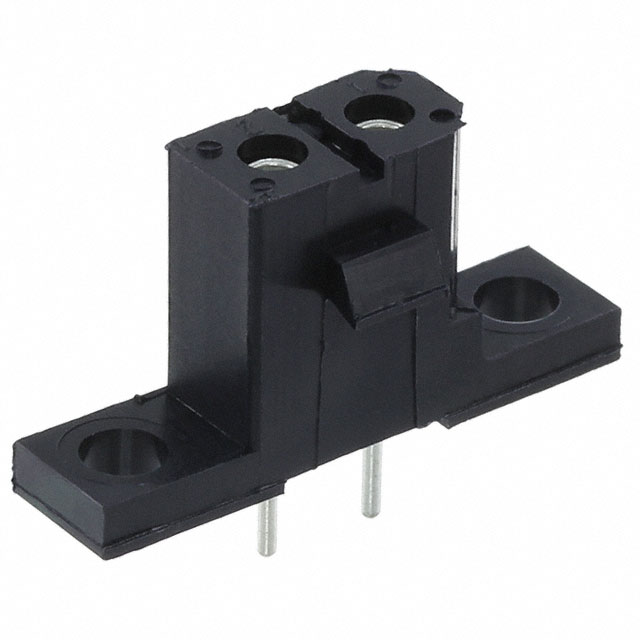

TST02RB02T

Active

ITT Cannon, LLC

RECTANGULAR POWER CONNECTOR, TRIDENT SERIES, THROUGH HOLE, RECEPTACLE, 2, 5.08 MM, SOCKET ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ITT Cannon, LLC

RECTANGULAR POWER CONNECTOR, TRIDENT SERIES, THROUGH HOLE, RECEPTACLE, 2, 5.08 MM, SOCKET ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TST02RB02T

Applications	Automotive, General Purpose
Connector Type	Receptacle
Contact Length - Post	0.224 "
Contact Length - Post	5.7 mm
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Mounting Flange
Insulation Color	Black
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Style	Board to Board, Cable
Termination	Solder

Part	Shrouding	Material Flammability Rating	Number of Positions	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Style	Termination	Contact Type	Mounting Type	Number of Positions Loaded	Insulation Height	Insulation Height	Features	Current Rating (Amps)	Fastening Type	Number of Rows	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Length - Post	Contact Length - Post	Connector Type	Insulation Material	Note	Pitch [x]	Pitch [x]	Color	Contact Termination
ITT Cannon, LLC TST02RB05T	Unshrouded	UL94 V-0	2	Automotive Industrial	-40 °C	105 ░C	Black	Board to Cable/Wire	Solder	Male Pin	Through Hole	All	13.5 mm	0.531 in	Mounting Flange	13 A	Latch Holder	1	250 VDC	5.08 mm	0.2 in	Circular	0.224 "	5.7 mm	Receptacle	Nylon Polyamide (PA)
ITT Cannon, LLC TST02RB02T		UL94 V-0	2	Automotive General Purpose	-40 °C	105 ░C	Black	Board to Board Cable	Solder	Female Socket	Through Hole	All	13.5 mm	0.531 in	Mounting Flange		Latch Holder	1		5.08 mm	0.2 in	Circular	0.224 "	5.7 mm	Receptacle	Nylon Polyamide (PA)
ITT Cannon, LLC TST02RA00			2		-55 °C	105 ░C				Male or Female	Panel Mount Snap-In						Latch Holder	1							Receptacle	Nylon Polyamide (PA)	Contacts Not Included	0.2 in	5.08 mm	Black	Crimp and Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	118	$ 4.89
Newark	Each	1	$ 3.90

General part information

2 Position Receptacle Connector 0.200" (5.08mm) Through Hole Tin
