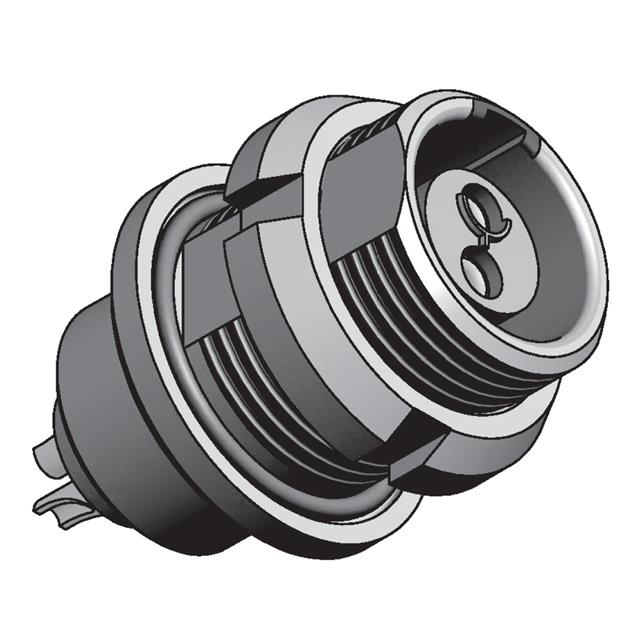

EAG.1T.512.CTN

Active

LEMO

PANEL MOUNT RECEPTACLE 2-PAIR

Search across all available documentation for this part.

Active

LEMO

PANEL MOUNT RECEPTACLE 2-PAIR

Technical Specifications

Parameters and characteristics for this part

Specification	EAG.1T.512.CTN

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polytetrafluoroethylene (PTFE)
Mounting Feature	Front and Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	12
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	512
Shielding	Shielded
Termination	Solder

Part	Fastening Type	Number of Positions	Insert Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Color	Ingress Protection	Contact Finish - Mating	Shell Material	Termination	Shielding	Orientation	Mounting Type	Connector Type	Shell Size - Insert	Primary Material	Shell Finish
LEMO EAG.1T.512.CTN	Push-Pull	12	Polytetrafluoroethylene (PTFE)	Front and Rear Side Nut	-55 °C	200 °C	Silver	IP68 - Dust Tight Waterproof	Gold	Brass	Solder	Shielded	G	Panel Mount Through Hole	Receptacle Female Sockets	512	Metal	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Female Sockets Solder
